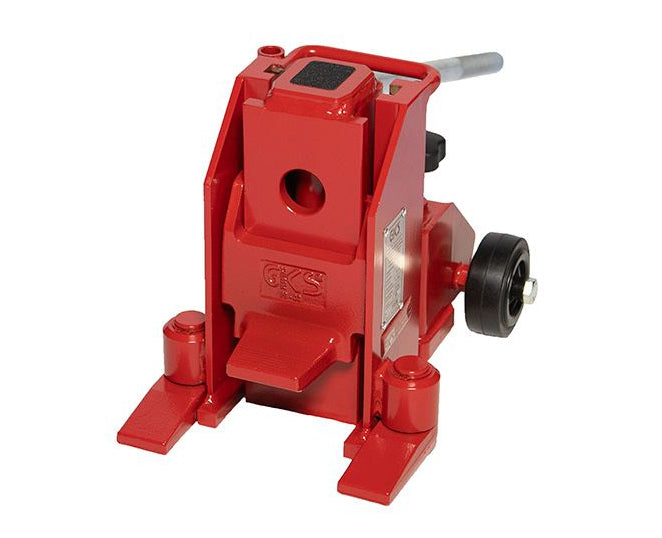

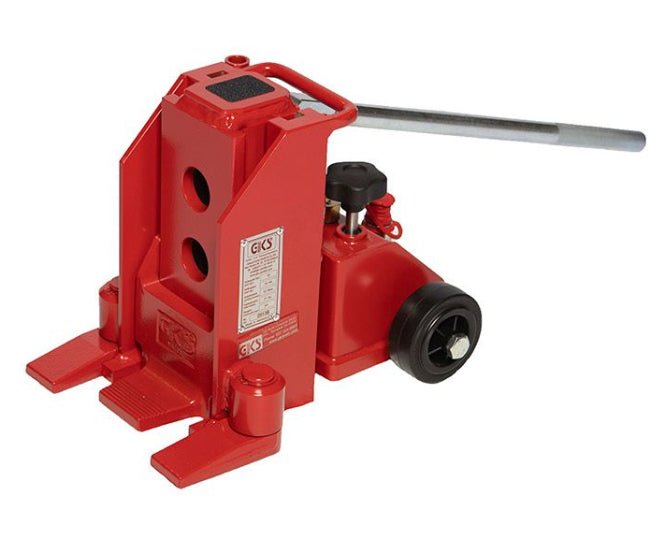

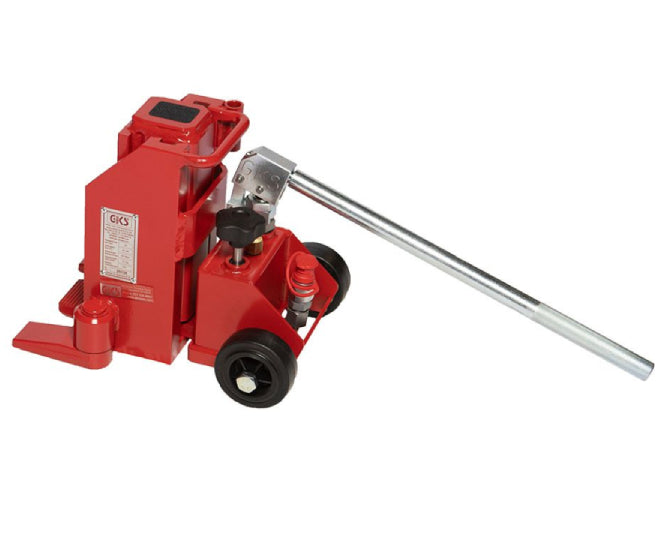

V5 Hydraulic Toe Jack

The GKS V5 Hydraulic Toe Jack is a rugged and reliable lifting solution designed to tackle heavy-duty tasks under 11,000 lbs. (5 tons) with ease. Crafted with forged steel, this hydraulic jack offers exceptional strength and versatility for various industrial applications. It has three available toe jack starting positions, and offers the same loading capacity on the toe and the head.

Product Info Sheet

Features:

• Forged, steel safety toe, which is stronger than the industry standard of cast steel
• A peg on the back of the toe that secures correct insertion
• Same loading capacity on the toe and the head
• 3 starting positions

Specifications:

• Weight: 46.3 lbs
• Load Capacity: 11,000 lbs. (5 t) 50kN
• Working Pressure: 7,542 psi (520 bar)
• Loading Height: Toe min 0.6" (15mm)
• Loading Height: Toe Max 5.7" (145mm)
• Lifting Height: 5.5" (140 mm)
• Top Plate (L x W): 2.7 x 2.4" (68 x 60mm)
• Lift Toe Positions: 3
• Dimensions (L x W x H): 11.2 x 9.3 x 10" (285 x 235 x 252mm)
• Weight with oil: 46 lbs. (21 kg)
