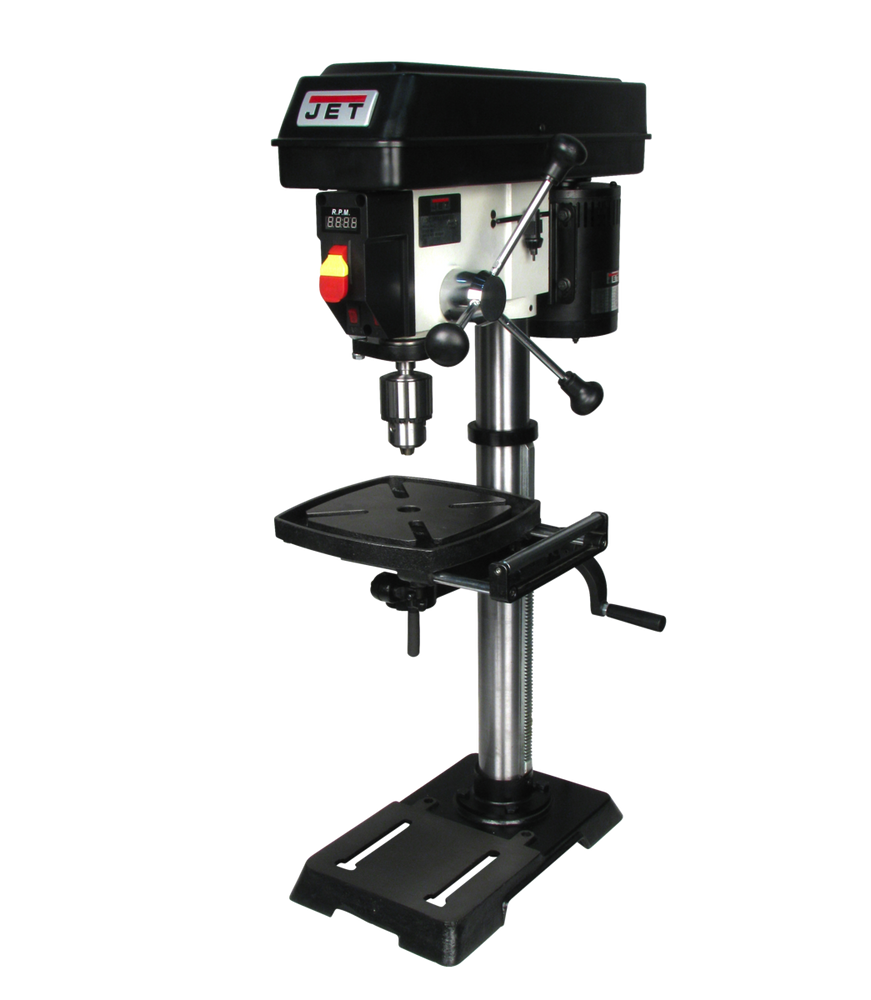

- Compact bench top design allows for easy transport
- 10 x 16-1/8 cast iron base fits neatly on work benches with limited space
- Stable base design allows for easy re-positioning on work bench
- Heavy Duty 1/2 HP induction motor for various drilling applications
- Mechanical variable speed drive system for easy speed changes
- Industrial 5/8 drill chuck for multiple drilling applications
- Oversized, ergonomic knobs provide ease of use and maximum control
- X-shaped XACTA Laser™ ensures drilling accuracy
- Digital read out displays spindle speed for different drilling applications
- LED work light increases visibility for intricate applications
| Height | 12.200 |
| Length | 29.700 |
| Gross Weight | 92.500 |
| Net Weight | 85.000 |
| Volume | 4.173 |
| Width | 19.900 |
| Ready For Web (US) | Yes |
| Prop 65 | Cancer and Reproductive Harm |
| Motor Power (HP) | 1/2 |
| Number of Spindle Speeds | Variable |
| Chuck Distance to Table (In.) | #N/A |
| Chuck Distance to Base (In.) | #N/A |
| Motor Voltage (V) | 115 only |
| Fence Size (L x H) (In.) | #N/A |
| Spindle Speed Range (RPM) | 530 - 3100 |
| Spindle Distance to Table (Max.) (In.) | 17 |
| Style (Type) | #N/A |
| Table Tilt (Deg.) | -45 to 45 |
| Column Diameter (In.) | 2-1/2 |
| Table Size Fully Extended (L x W) (In.) | 9-1/2 x 16-1/2 |
| Swing (In.) | 12 |
| Spindle Taper (In. x TPI) | #N/A |
| Chuck Size (In.) | 5/8 |
| Base Size (In.) | 10 x 16-1/8 |
| Motor Amps | 5 |
| Table Size (L x W) (In.) | 9-1/2 x 9-1/2 |
| Spindle Travel (In.) | 3-1/8 |
| Motor Phase (PH) | 1 |
| Wiring Remarks | #N/A |
| Recommended Circuit Size (Amps.) | #N/A |
| Prewired Voltage (V) | #N/A |
| Weight (Lbs.) | 85 |
| Spindle Taper | MT-2 |
| Assembled Machine Dimensions (In.) | #N/A |
| Spindle Distance to Base (In.) | 23-3/8 |
| Assembled Machine Dimensions (L x W x H) (In.) | #N/A |
| Prewired Voltage (V.) | #N/A |
| Motor Voltage (V.) | #N/A |
