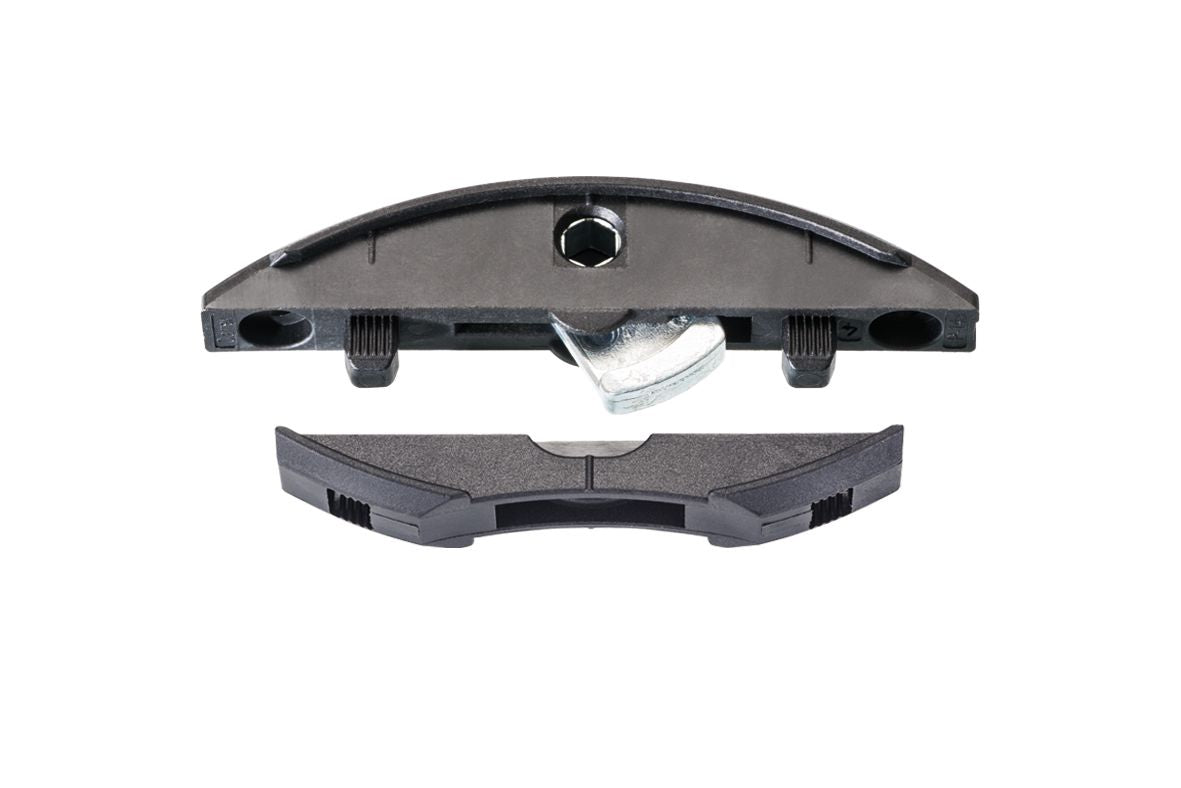

Clamex P Medius complements the Clamex P-14 connectors for use in shelving units where two shelves meet the dividing panel at the same height. Medius consists of two parts with different installation depths. The lever part is installed in the shelf, anchored in a 14mm deep P-System groove. Thanks to its installation depth of just 10mm and crescent-shaped cut out, the second part can be fitted back-to-back in a dividing panel measuring just 16mm (5/8") in thickness.

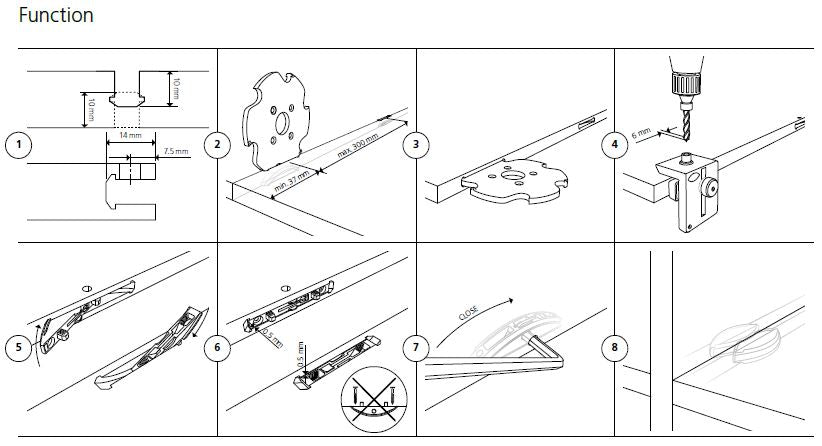

The form-locking P-System enables secure installation in the workpiece without the need for tools in just seconds. Clamex P does not require glue or screws, and thus offers numerous benefits in the manufacturing process while also distinguishing itself from standard connecting hardware. Uses Zeta P2 depth setting 14 and 10.
Description
- For dividing panel connection for shelf units where two shelves meet the dividing panel at the same height
- Clamex P Medius 14/10 is a dividing panel connector compatible with the Clamex P-14 connector in material with a minimum thickness of 16mm (5/8")
- Clamex P is a detachable, high-strength joining system that connects within seconds
- Nearly invisible with its 6mm tool opening
- Join wood using Zeta P2 power tool or a CNC machine
Benefits
- Practically wear-free knock down fitting

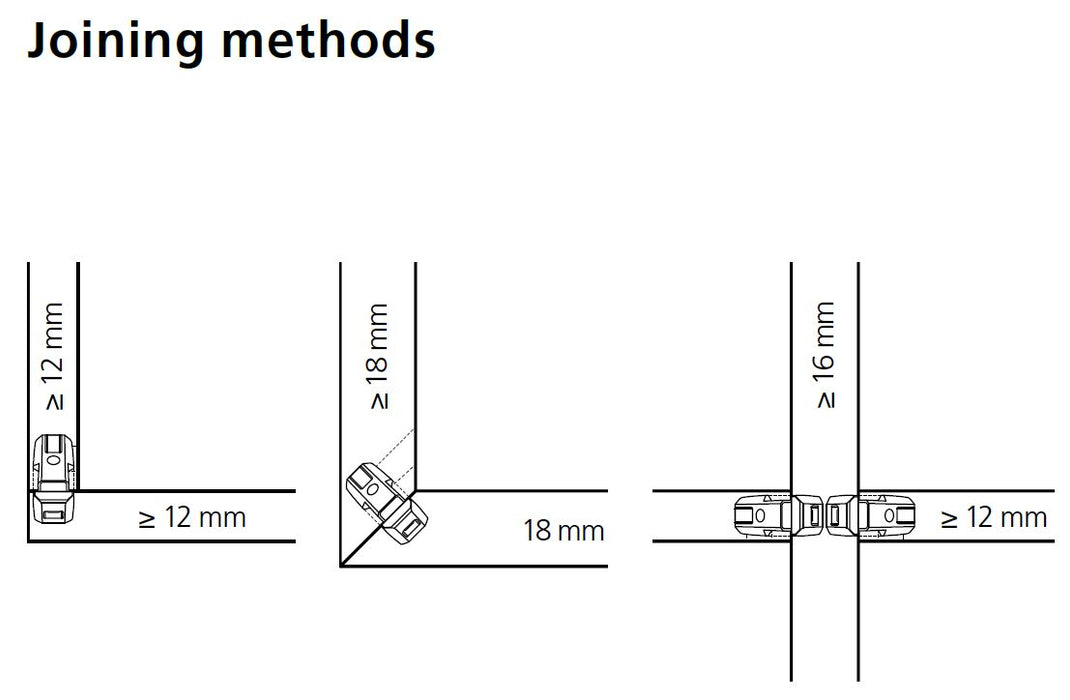

- Same positioning of P-System grooves on both sides possible for dividing panels with a minimum thickness of 16 mm (5/8")
- Minimal tool opening of just 6 mm
- Fast, tool-free installation of connectors
- Stackable for transport, with connectors pre-installed
- Lateral tolerance for efficient installation with the Zeta P2 biscuit joiner or a CNC machine
Applications
- Dividing panel connection of shelf units where two shelves meet the dividing panel at the same height. This removes the need to offset the cutting position on dividing walls and reduces potential errors
- Surface installation in material thicknesses of 12mm since one half of the connector is anchored just 10mm deep
- Knock down fitting for furniture, shelf units, fitted wardrobes, kitchen manufacturing etc.
- Connecting fitting for detachable elements in shop fitting and trade show construction
- Powerful alternative to standard connecting fittings
- Rapid prototype construction before starting a new furniture range
- On-site adjustments and assembly
Technical Specifications
Size: 66 × 27 × 9.7 mm • 52 × 7.5 × 9.7 mm
Cutter: Ø 100.4 × 7 × 22
Shell material: Fiberglass reinforced plastic
Lever material: Zinc die cast
Installation tolerance: Longitudinal ± 1 mm
Tensile strength:
Particle board: ~ 700 N ≈ 70 kg
MDF:: ~ 800 N ≈ 80 kg
Beech: ~ 900 N ≈ 90 kg
Material Range: Particle Board, MDF, Plywood, Softwood, Hardwood, Etc.
Lamello P-System Brochure
Ideal for separating panels
Clamex P-14 Medius enables joints of separating panels with panel thicknesses from 16 mm.
Very aesthetic
Only a small, barely visible tool opening of 6mm is used to open and close the connector.
A detachable all-rounder
Workpieces connected with the Clamex P can be detached at any time using the rotating lever.
Fastest connection
Connected in seconds with Clamex or Tenso. Connection is complete within seconds, without waiting time, clamps, or post-processing work.
P-System anchorage
Tool-free anchoring of connectors, without adhesive or screws.
