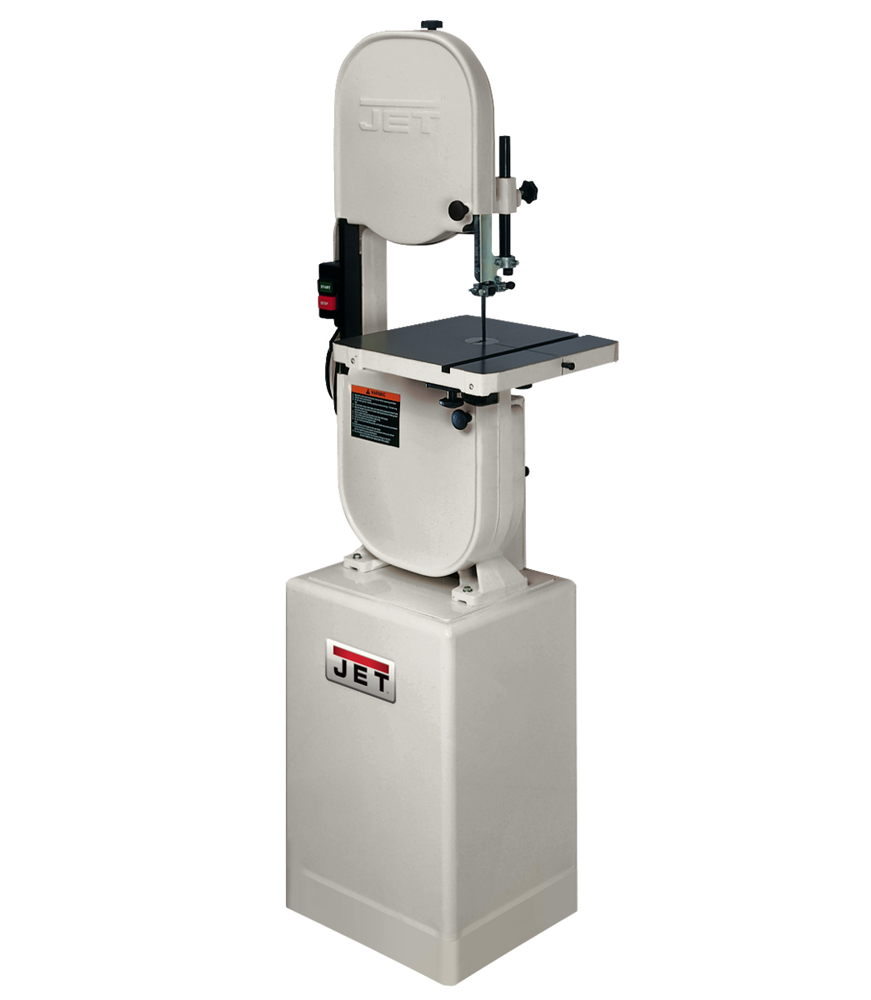

- 6 depth resaw capacity for cutting larger pieces of wood
- 15 x 15 offset cast iron table gives you more work area in front of the blade
- Cast iron frame construction for strength and rigidity, reduced vibration
- 4 dust port allows for direct connection of dust collection system
- 6-spoke, precision computer balanced wheels eliminate vibration for accurate blade tracking
- Single knob tracking adjustment simplifies the blade tracking process
- Micro-adjustable lower blade guide reduces set up time and makes adjustments easier
- Graphite impregnated polymer blade guides with roller bearing thrust guides provide quicker set-up and a cooler running blade
- 3/8, 6 TPI woodworking blade is included so you can start cutting right away
| Height | 68.000 |
| Length | 19.000 |
| Gross Weight | 200.000 |
| Net Weight | 185.000 |
| Volume | 19.440 |
| Width | 26.000 |
| Ready For Web (US) | Yes |
| Prop 65 | Cancer and Reproductive Harm |
| Table Height from Floor (In.) | 43-1/2 |
| Blade Length (In.) | 93-1/2 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Miter Gauge Positive Stops | #N/A |
| Blade Speed (SFPM) | 3000 |
| Table T-Slot (In.) | #N/A |
| Recommended Circuit Size (Amps.) | #N/A |
| Stand Type | Closed |
| Motor Power (HP) | 1 |
| Motor Voltage (V) | #N/A |
| Dust Collection Minimum CFM Required (CFM) | 300 |
| Motor Phase (PH) | 1 |
| Prewired Voltage (V) | #N/A |
| Motor Amps | #N/A |
| Table Size with Extension (L x W) (In.) | #N/A |
| Dust Port Outside Diameter (In.) | 4 |
| Style (Type) | #N/A |
| Cutting Capacity Height (In.) | 6 |
| Table Tilt (Deg.) | 10 L, 45 R |
| Blade Width (In.) | #N/A |
| Table Size (L x W) (In.) | 15 x 15 |
| Maximum Saw Blade Width (In.) | 3/4 |
| Cutting Capacity Width (In.) | 13-1/2 |
| Band Saw Size/Wheel Diameter (In.) | 14 |
| Wiring Remarks | #N/A |
| Motor Voltage (V.) | 115/230 |
