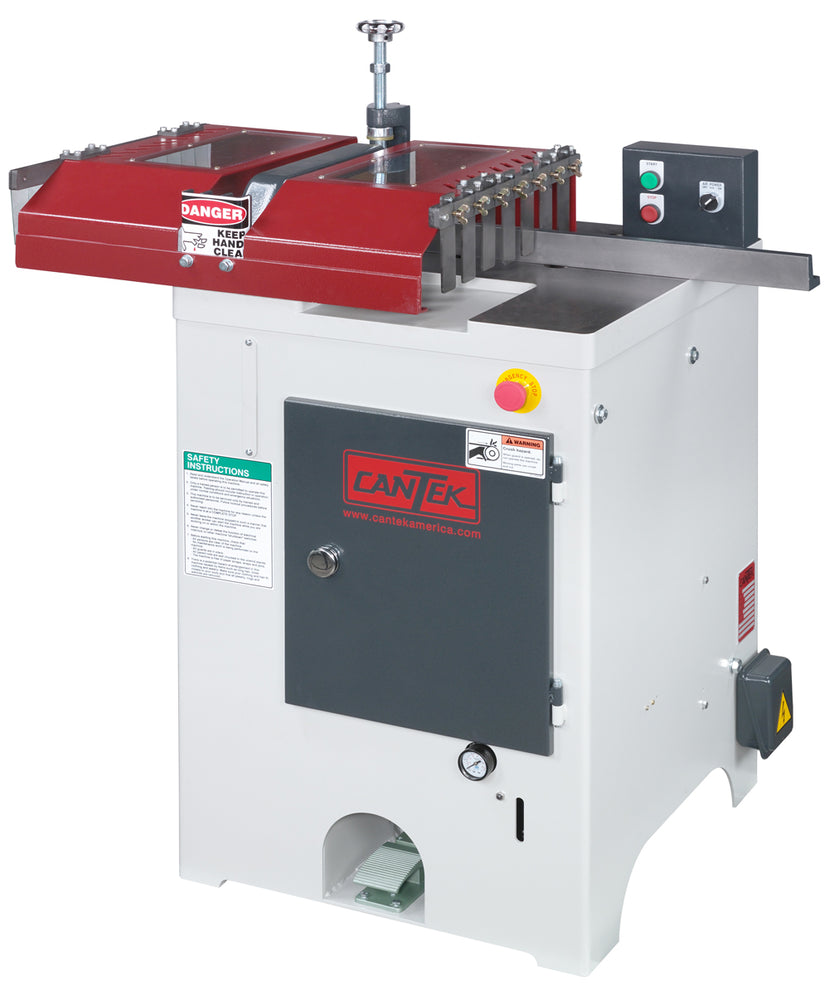

Cantek PCS14D Pneumatic Cut-Off Saw w/ Dual Push Button Control (LH or RH) INCLUDES FREIGHT
Cantek PCS14D Pneumatic Cut-Off Saw w/ Dual Push Button Control (LH or RH) INCLUDES FREIGHT

Cantek PCS14D Pneumatic Cut-Off Saw w/ Dual Push Button Control (LH or RH) INCLUDES FREIGHT

by Cantek
$7,690.00 USD
SKU WSI-CANTEKPCS14D-230
 More payment options
  • Left Hand or Right Hand configuration available
  • Cutting off capacity (thickness x width): 1″ x 10″, 2″ x 9″, 3″ x 8″
  • Powerful 5HP main motor
  • Dual push buttons for safety with adjustable cutting speed from the front of the machine
  • Fast cutting rate up to 95 strokes per minute.
  • Cast iron table surface is precision ground assuring high cutting accuracy.
  • Safety blade guard with adjustable fingers for added safety.
  • Material clamp is easily adjusted for workpiece thickness variation.
  • CSA/UL magnetic switch
  • Door safety limit switch with 3” long screw
Cutting capacity (thickness x width) 1″ x 10″, 2″ x 9″, 3″ x 8″
Cycle speed 95 strokes/min
Cycle operation Air
Saw blade size (optional) 14″
Saw arbor diameter 1″
Saw blade speed 4100 RPM
Dust exhaust diameter 4″   (100mm)
Motor 5 HP
Table size 24.8” x 23.2” (630 x 590 mm)
Net weight 530 lbs.  (240 kgs)
Gross weight 640 lbs.  (290 kgs)
Packing dimensions (L x W x H) 30” x 30” x 51.2” (770 x 760 x 1300mm)
Electrics 230/3/60 (15.2 AMPS Full Load)
