Techniks 30000-Solid HSK 63F x ER 32 - 70mm, Slotted Nut with No Thru Hole Toolholder
Click or scroll to zoom
Tap or pinch to zoom
Techniks 30000-Solid HSK 63F x ER 32 - 70mm, Slotted Nut with No Thru Hole Toolholder
Techniks 30000-Solid HSK 63F x ER 32 - 70mm, Slotted Nut with No Thru Hole Toolholder

Techniks 30000-Solid HSK 63F x ER 32 - 70mm, Slotted Nut with No Thru Hole Toolholder

by Techniks
Sale
$275.00 USD
$200.00 USD
SKU TK30000-SOLID
 More payment options

Recommended (no thru hole) toolholder for SCM CNC Machines.

The 30000-Solid HSK 63F x ER 32 - 70mm, No Thru Hole Toolholder is a critical tool for machining operations that require a toolholder without a thru-hole. This solid toolholder features a no thru-hole design, which eliminates the thru-hole, providing increased rigidity and stability during machining operations and helps prevent dust from entering the spindle moulder from the toolholder.

Features

  • No Thru Hole Version, Highly Recommended for SCM CNC's
  • Balanced to 25,000 RPM at G2.5
  • Maximum 0.0001″ T.I.R. measured from taper to collet pocket
  • PowerCOAT Nut increases holding power by 75%
  • Includes slotted collet nut, #46132

Collet Type: ER 32

Toolholder Style: HSK 63F

Gage Length: 70mm

Diameter: 50mm

Material: 8620 Steel

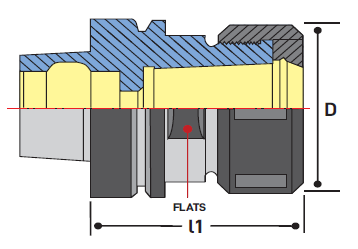

Technical Data

Collet Series ER 32
Body Dia-Workpiece Side (in) 1.969
Body Dia-Workpiece Side (mm) 50
Gage Length (in) 2.76
Gage Length (mm) 70
Gage Length-Face Contact (in) 2.76
Gage Length-Face Contact (mm) 70
Lock Nut Diameter (in) 1.97
Lock Nut Diameter (mm) 50
Overall Length (in) 3.74
Overall Length (mm) 95
Material 8620 Steel
Taper HSK 63F
Overall Diameter (in) 2.48
Overall Diameter (mm) 63
Unit of Tool Metric or Inch
Type Taper Shank Collet Chuck
Style No Thru Hole
Capacity Range (in) 0.043" - 0.83"
Capacity Range (mm) 1.1 - 21mm
Balanced to 25,000 RPM at G2.5
