Continuous through feed end matcher producing tongue and groove on flooring & paneling.

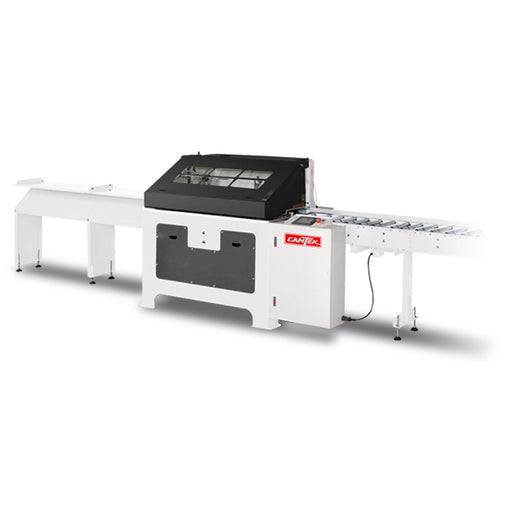

The Cantek EM12 End Matcher is specially designed for machining tongue and groove (with or without bevels) on hardwood flooring and wall/ceiling paneling up to 12” wide. Its compact design with continuous through feed system allows for maximum output in a small space. Equipped with a user-friendly touch screen interface allow for simple operation with excellent performance and error diagnostics. The dual counter-rotating cutterheads produce both the tongue and groove simultaneously ensuring a perfect match. The anti-tear-out blocks and counter rotation of the heads ensure optimum cut quality without chipping or blowout. The insert style segmented cutterheads can be adjusted according to your desired tongue / groove thickness and can perform a micro-bevel or not. The variable speed infeed conveyor, variable feed speed, and variable cross-cutting speed allow the operator full control according to the type and size of material being run. The innovative clamps allow for simultaneous top and side clamping to ensure pieces are perfectly square for consistent end matching results.

For added productivity the EM12 End Matcher can be installed in-line with our CFS100 Automatic Defect Cutoff Chop Saw to perform defecting and end matching in a single line. This greatly reduces the handling while increasing output with defect free flooring or paneling.

Capable of processing end matching on flooring or paneling up to 12” wide x 1.38” thick
Through-feed system allows the tongue and groove to be cut simultaneously on the tail of one board and the leading edge of the next board
Powerful dual 10HP cutterhead motors allow for maximum cutting rate no matter the width, thickness, or species of the wood
Stackable insert knife cutterheads allow for perfect matching of tongue and groove thickness
Variable cross-cutting feed speed and anti-tear-out blocks produce optimum finish quality on tongue and groove
Minimal floor space required with through feed design
User friendly PLC control touch screen can keep track of total linear feet cut as well as piece count
Production capacity of 77 lineal feet per minute based on average of 6.5’ board

Variable speed through-feed system is controlled by frequency inverter
Powered top urethane rolls and spring-loaded bed rollers feed the material into position for processing
Pneumatic side pressure system ensures the material is held square against the fence
Capable of processing material as short as 12” to an unlimited length
Cutterheads are stacked and fully adjustable with replaceable and rotatable insert knives
Cutterheads are equipped with removable micro bevel insert cutter section for bevel or square flooring / paneling
118” powered infeed table with angled rolls ensure material is fed up against the infeed fence

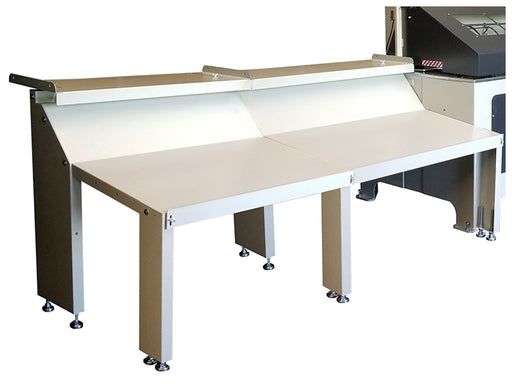

87” outfeed slide table allows board to slide out of the way while the next board comes through to be processed resulting in continuous production
Chrome table ensures maximum wear resistance
Complete safety and noise reduction enclosure
Added feature of inverter-controlled infeed conveyor allows you to slow the infeed speed when dealing with heavy boards

CAPACITY	Width	1.6″~12″
	Thickness	0.4″~1.38″
	Min. Length	12”
	Max. Length	Unlimited
FEED	Feed Speed – max.	295 FPM
	Cutting Speed – approx. throughput	77 FPM (Based on 6.5′ board)
	Powered Infeed Table – Std.	173″ (14.4’) long – longer optional
	Outfeed Table – Std.	86.6” (7.2’) long – longer optional
MOTORS	Cutterheads	10Hp x 2
	Feed System	1 Hp
	Cutter Drive	1/2 Hp
ELECTRICAL	Power	230, 460 or 575/3/60
	Control Voltage	24 VDC
	Connected Load	21.5HP
	Full load amperage (FLA)	230/3/60 – 50.4 Amps
		460/3/60 – 25.20 Amps
CLAMPING	Clamping	Top & Side
OTHER DATA	Spindle Dia.	40mm
	Dust Collection Outlet	6” diameter
	Compressed Air Requirements	85PSI – approx. 12 CFM
	Machine Dimensions (LxWxH)	91” x 51.5″ x 63″
	Machine Weight	2530 lbs.
