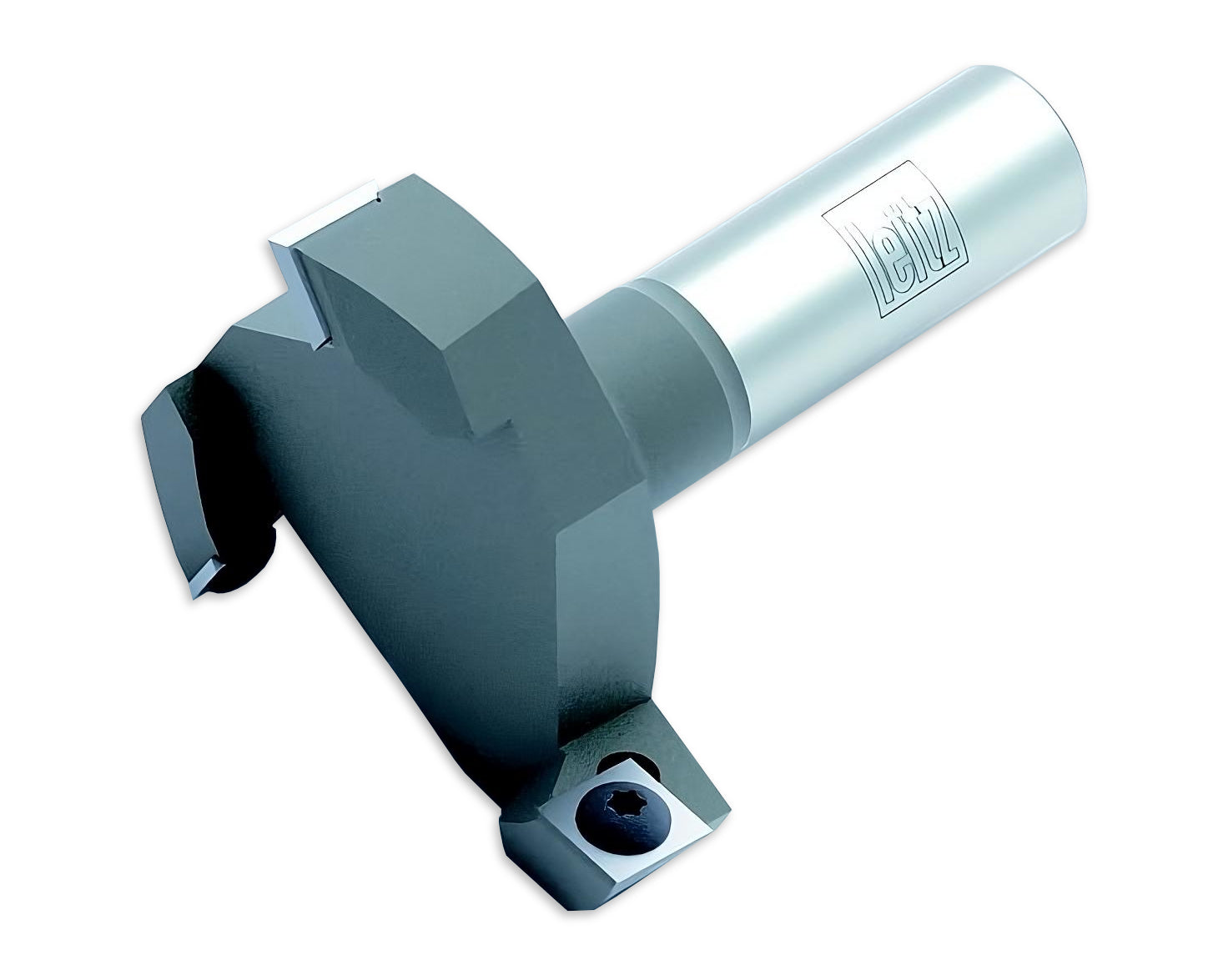

Leitz 4" Flycutter with 3/4" Shank
It is recommended to purchase the dedicated heatshrink toolholder, HSK-F63 ThermoGrip Chuck, LT670012 to pair with the 4" flycutter for planing spoilboards. When purchased together, the flycutter will be heat-fitted into the ThermoGrip Chuck.
Application
For surface planing materials (such as spoilboards) or recessing of large workpieces. Equipped with replaceable 4-sided inserts, with or without radius corners, for exceptional finish quality in solid woods and MDF.
Machine
CNC routers.
Workpiece Material
Suitable for processing softwood, hardwood, plywood, chipboard, MDF, with or without laminated or veneered surfaces.
Technical Information
Diameter: 4" Inches
Shank Diameter: 3/4"
Overall Length: 2-7/8"
Cutting Length: 14mm
Wings: 3 Total
Rotation: RH
Style: Up-Shear
Tooling
Insert Type A, 5099: 14 x 14 x 2mm
Torx Screw, 7808: M5 x 12.9mm
Call or email for pricing and availability on additional sizes of Flycutters.
