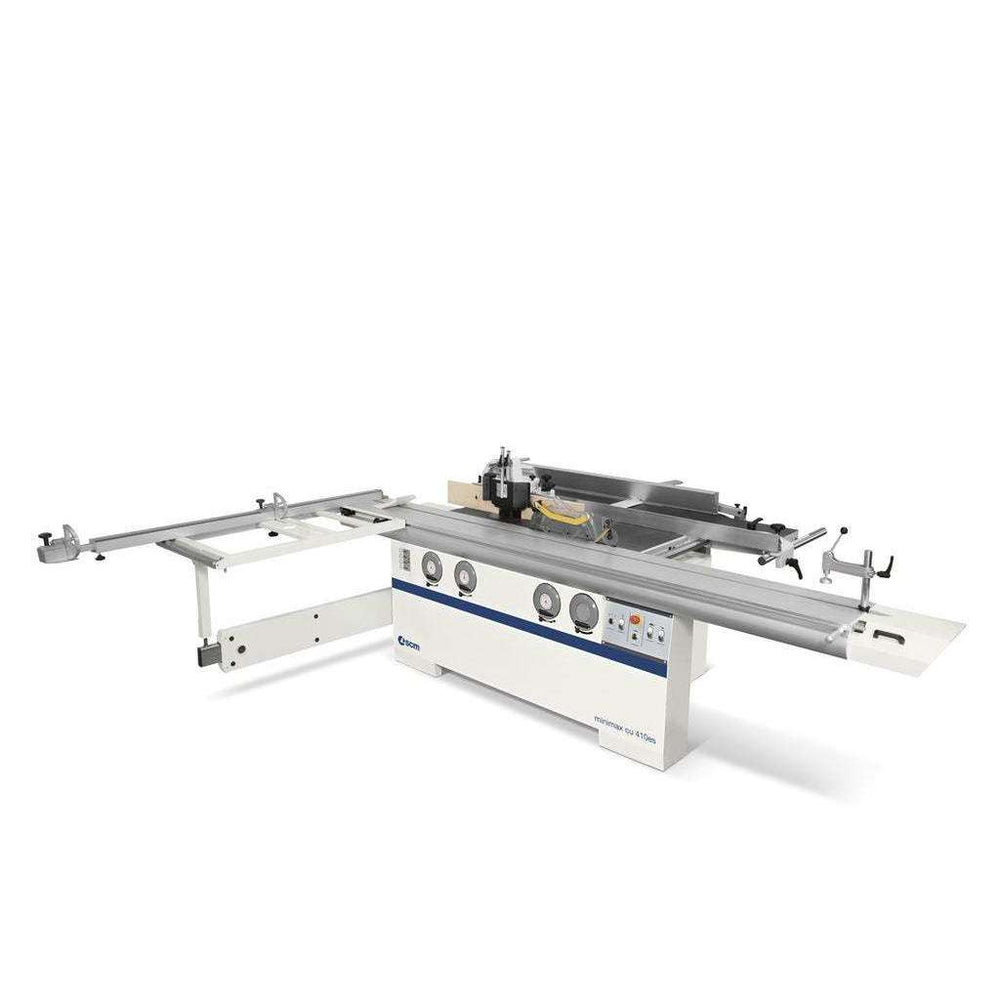

SCM Minimax CU 410ES Tersa Combination Machine, INCLUDES FREIGHT

The SCM Minimax CU 410ES is a high-performance combination machine that seamlessly integrates a jointer, planer, shaper, sliding table saw, and an optional mortiser into a compact, precision-driven unit. Featuring a Tersa cutterhead, it ensures smooth and efficient planing with a 410mm working width and a 2200mm (86.62") jointer table for superior material support. The planer offers a 30.5" x 16.12" table, 20–39 ft/min feed speed, and a working height range of 3mm to 240mm. The sliding table saw is designed for precision, accommodating a 350mm maximum blade diameter with a 5/8" arbor, a 120mm scoring blade with a 20mm arbor, and a 320mm (10.5") sliding table, with a 1000mm (39.31") cutting width on the parallel fence. The shaper includes a 125mm max useful height spindle with four speeds for versatile shaping capabilities. Powered by three main 8 HP motors and a dedicated 1 HP scoring blade motor, the CU 410ES delivers industry-leading accuracy, stability, and power—making it the ultimate all-in-one solution for professional woodworking shops.

STANDARD EQUIPMENT

• Optimizer/Sequencer App for Tablet: SCM Thundercut
  App for iOS and Android tablets (available on App Store and Play Store).
  It can be activated using the QR code supplied with the machine. The App allows to:
  • Create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists
  • Optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App
  • Set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step
• Units adjustment by hand wheels ergonomically positioned on the front of the machine.
  Mechanical readouts (1/10 mm) for blades tilting, planer table height and shaper position

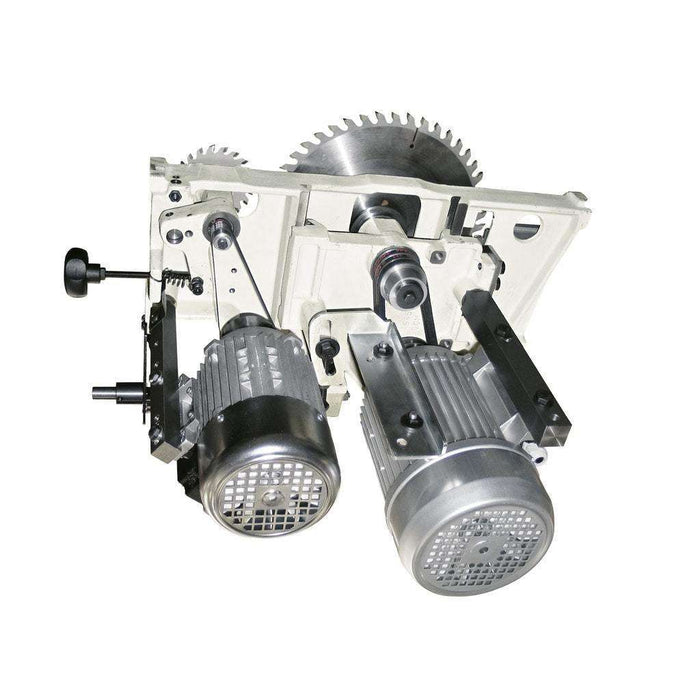

• Cast iron saw unit, with lifting system by means of "dove-tail" guideways and tilting on high rigidity sliding side trunnions, complete with scoring unit with independent motor and external setting up

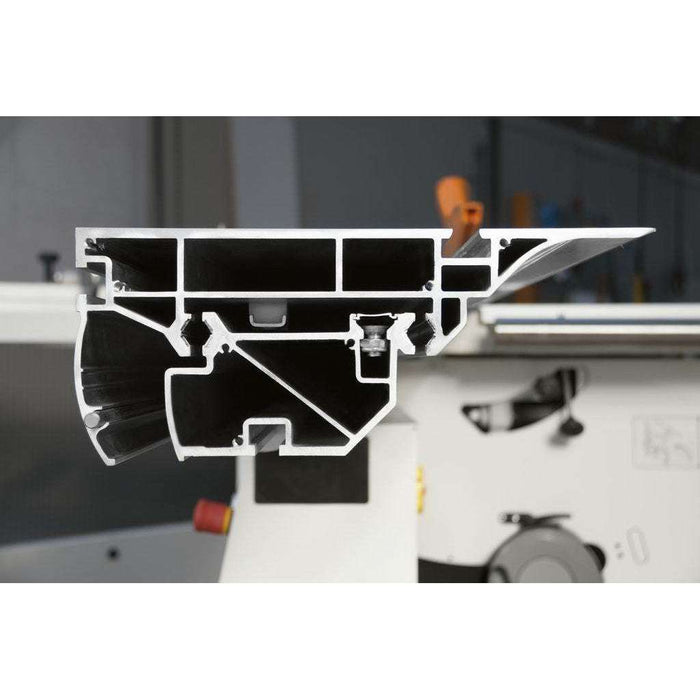

• Extruded anodized aluminum sliding table (dimensions 2600 x 360 mm) sliding on high precision hardened steel guideways, which are fixed on the carriage by means of mechanical bending system

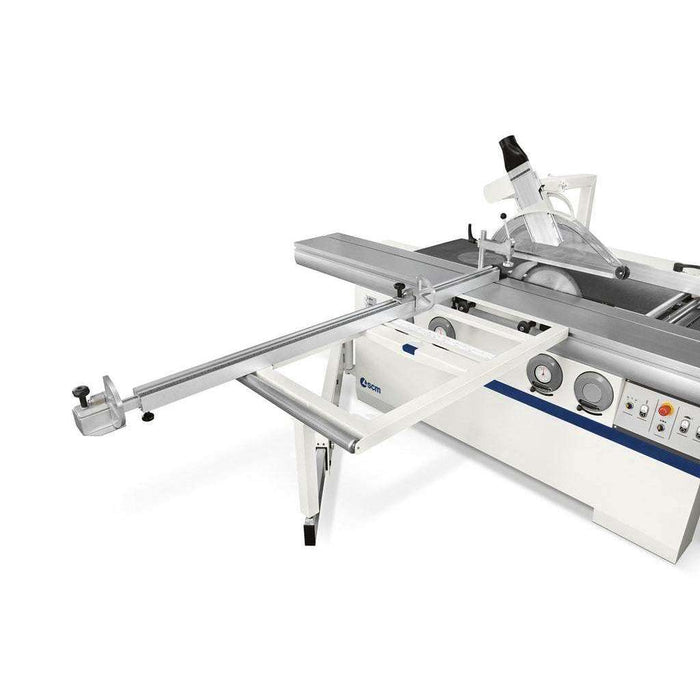

• Squaring frame (dimensions 1200 x 650 mm) complete with:
  • Telescopic fence with 2 crosscut flip-over stops
  • Eccentric clamp
  • Swinging arm support
  • Idle roller to facilitate the panel loading/unloading
• Dedicated rip fence with:
  • "High rigidity" cast iron fence support
  • Micrometric adjustment and cam-locking system
  • Rectified steel round sliding bar, 45 mm diameter
• Adjustable shaper fence, with reference pins for easy re-positioning and numeric readout for micrometric adjustments
• Shaper reverse rotation

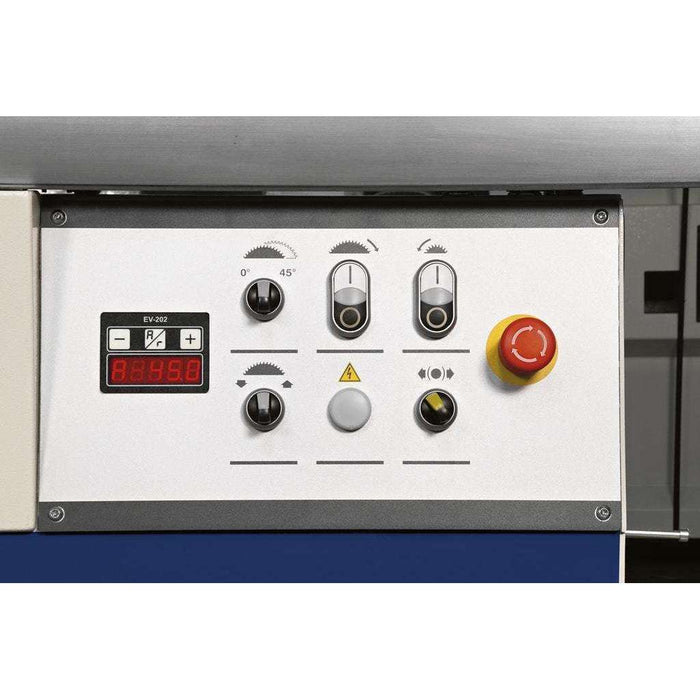

• Shaper speed readout by LEDs
• Dedicated planer fence (dimensions 1800 x 150 mm) complete with "high rigidity" cast iron support and sliding on steel round bar
• Jointer table lifting by means of 4 columns dust protected
• Helicoidal planer infeed roller
• Sandblasted steel planer outfeed roller
• Simultaneous planer tables opening, at 90°, towards the inside of the machine

INCLUDED TOOLING

• Qty. 1 scoring blade
• Qty. 4 TERSA knifes
• Trimming shoe, push stick and push handle
• Toolbox: Wrenches, allen wrenches, spare belt, user manual, spare parts catalog
