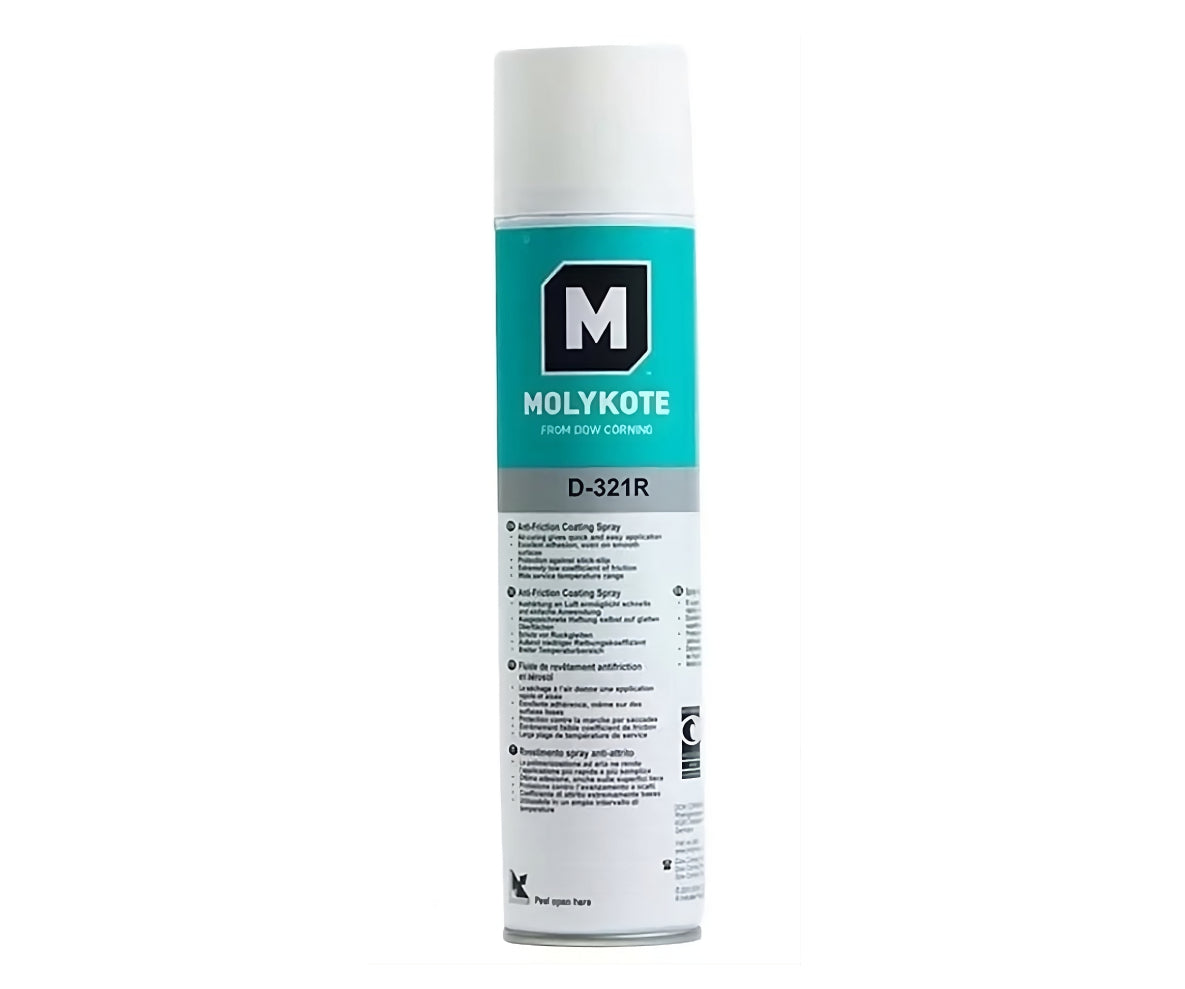

Molykote D321R Dry Film Lubricant for Morbidelli CNC's - 400ml, 0002402009A

$94.00 USD
SKU 136901
 More payment options

Molykote D-321 R anti-friction coating is an air-curing, solid, dry lubricant that is used for metal to metal applications that have high loads and slow to medium fast movements. It can also be used to improve the running-in process, permanently lubricating stressed sliding guides, or on high voltage switches. It provides resistance against ageing and stick-slips.

Features:

  • For metal/metal combinations with slow to medium fast movements and high loads.
  • Suitable for the permanent lubrication of highly stressed sliding guides with low sliding speeds, oscillating movements or intermittent operation.
  • Improving the running-in process and for lubrication under high vacuum and at extreme temperatures.
  • Used successfully for cylinder-head bolts, toaster guides, car mirror adjustment mechanisms, high voltage switches, for the running-in of highly stressed gear wheel.
  • Emergency lubricant for parts of the rotor head of wind energy installations and for groove-free cold extrusion of steel.

SCM Morbidelli X200 CNC Applications: Lubrication of the CNC X and Y Axes every 960 service hours or 6 months.

Clean the whole rack thoroughly with clean cloths, removing any residue of old grease that may be contaminated with dust or impurities; dry thoroughly with clean cloths; cover the whole rack with a thin layer of Molykote D321R lubricant with a spray can. Recommended to cover machine structure close to rack to protect when spraying, starting right to left and vice versa, directing the flow upwards from the bottom. Wait for a few minutes before moving the axes.

Suggested Applications: Anti-Friction Film Spray, Cylinder head bolts, Toaster guides, High voltage switches

Color: Grey/Black

Size: 400ML (9.3 oz aerosol spray can)

Benefits: Air Drying, High Aging Resistance

Lubricant Type: Solid Lubricants

Operating Temperature: -180ºC to 450ºC (-292ºF to 842ºF)

Cure Time: 2h @ 23 °C (Room Temperature)

Morbidelli X200 CNC - Molykote D321 R - Maitenance Manual



Morbidelli X200 CNC - Maitenance Manual Greases and Oils
