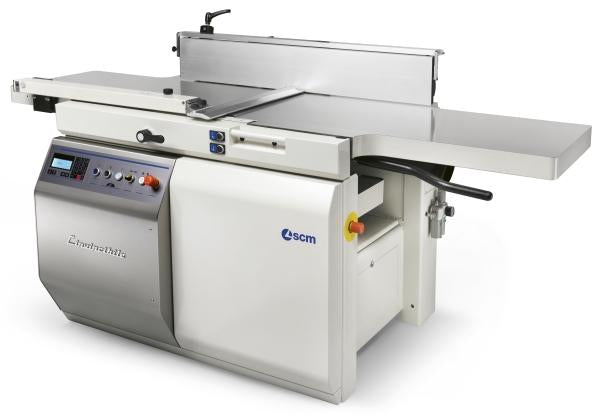

SCM L'invincibile FS 7, Xylent Jointer, Planer, INCLUDES FREIGHT

The SCM L’invincibile FS 7 is a top-tier, professional-grade jointer/planer combination machine, engineered for precision, durability, and high-performance results in demanding woodworking environments. Powered by a robust 15 HP, 3-phase motor (220V), it features SCM’s advanced Xylent spiral helical cutterhead, designed for superior cutting efficiency, reduced noise, and an impeccable finish. The Xylent cutterhead utilizes 84 carbide insert knives arranged in a spiral pattern, ensuring exceptional surface quality while significantly lowering operational sound levels.

With an expansive 20.44” (520mm) working width and 90.94” (2310mm) total surfacing table length, the FS 7 is ideal for large-scale, precision woodworking projects. The monoblock base and cast iron tables provide maximum stability, while the parallelogram adjustment system ensures consistent, high-quality results. Equipped with READY digital control for planer table positioning, automatic table lifting with a hydraulic-controlled pneumatic system, and adjustable feed speeds ranging from 16 to 59 ft/min, this machine delivers seamless transitions between jointing and planing operations. Designed for professional craftsmen and high-production workshops, the L’invincibile FS 7 guarantees unmatched accuracy, reliability, and ease of use.

**Freight Included**

STANDARD EQUIPMENT

• Monoblock Base and Cast iron tables
  • The solid, welded base undergoes a treatment call normalization which stabilizes the metal and assures exact tolerances. All machine mechanisms are mounted, aligned, and referenced to the base. This design is vastly superior to frames that are bolted together and have no true reference point.
  • The cast iron tables are machine polished. These castings are ribbed to ensure maximum strength and to avoid problems with the tables warping or breaking during use.
• READY Digital control for the planer table positioning
  • The electronic positioner ensures maximum precision and reliability for work piece set-up. Automated movement in jog, semi-auto, and programmed mode allow easy, quick and accurate positioning.
• Manual movement of infeed surface tables by means of parallelogram system on connecting rods, with readout of cutting depth on scale
  • This technology has the table height adjustment through a system of four cams (one per corner of support) that pivot on a radius equal to the head radius. The radiused pivot ensures that the table chip breaker remains in the correct position from the head; in addition, it eliminates splintering and a poor quality finish commonly caused by other adjustment systems.
• SERVO- SYSTEM: simultaneous lifting and locking of surface tables complete with mechanical safety device
  • Speedy setting up for changeover from jointer to planer with lifting of surface table and automatic positioning of exhaust hood by means of pneumatic system with hydraulic control
• Infeed sectioned pressers
• Rubber-coated outfeed roller
• Interchangeable feed rollers
• Automatic star-delta start on main motor

TOOLING INCLUDED

• Qty. 84 xylent knifes 15x15x2.5 mm (0.56x0.56x0.12”)
• Push stick and push handle
• Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog

SAFETY/PROTECTIONS

• Safety microswitch for correct positioning of surface tables and/or thicknesser chips conveyor
• Automatic brake on motor
• Overload switch protection
• Auxiliary low voltage circuit (110 volt)
• Emergency pushbutton
• Main power switch can be locked in the off position with a padlock
