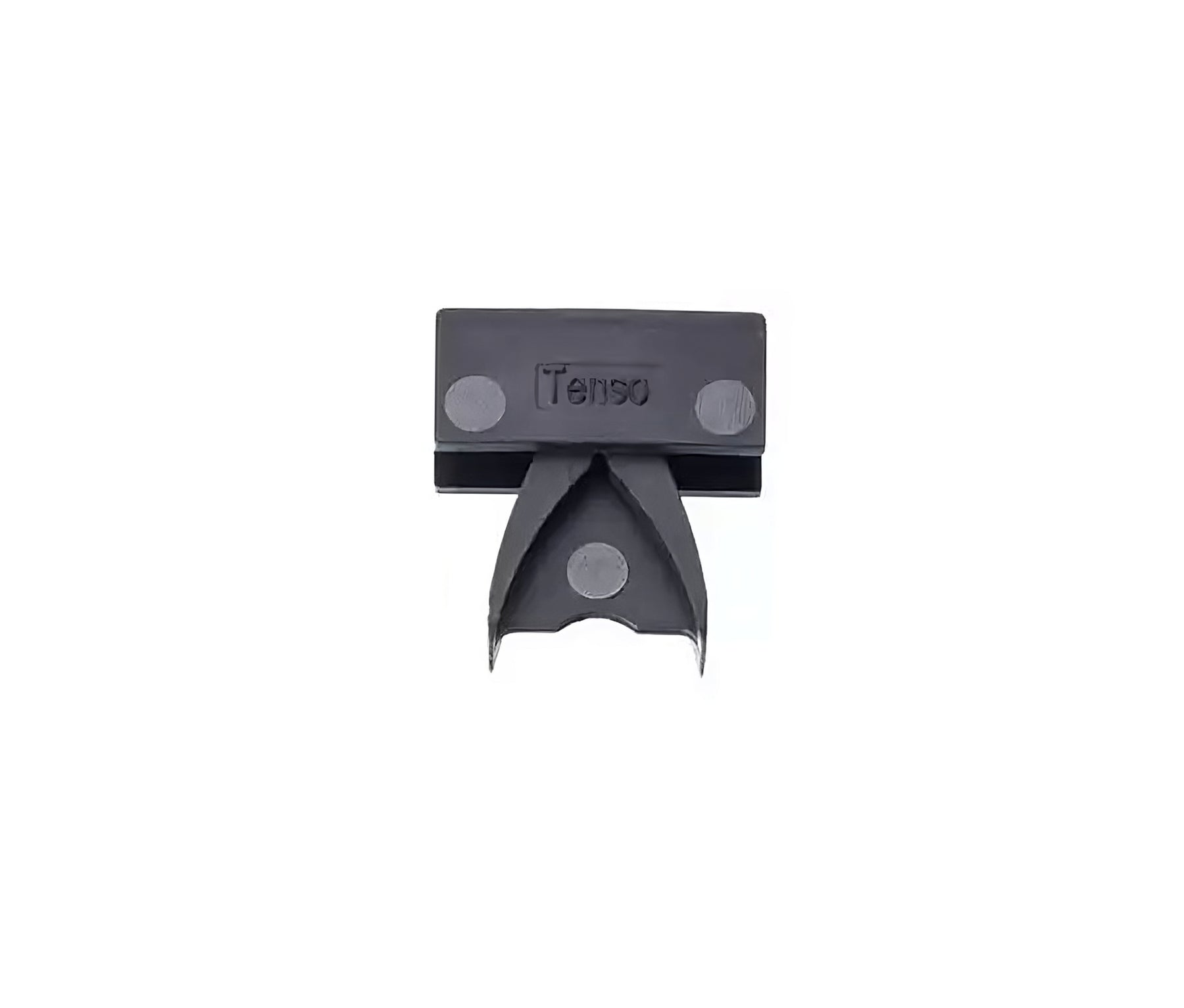

Lamello Tenso P-14 Preload Clips

Name: Lamello Tenso P-14 Preload Clips
Brand: Lamello
SKU: CL145426
Price: 65.0 USD
Availability: InStock

by Lamello

$65.00 USD

SKU CL145426

Quantity

More payment options

The Tenso P-14 Preload Clip is the perfect self-clamping connector for gluing materials as thin as 16mm, offering high clamping force for perfectly secure and aesthetic joints. With a pretensioning function ideal for angles from 22.5° to 180°, it ensures fast, invisible connections without the need for clamps or shims, making it an excellent solution for furniture and interior design applications.

Features

Self-clamping connector for gluing, installed in seconds.
Invisible connection for maximum aesthetics.
Pretensioning fuction, ideal for miters and connection situations from 22.5° to 180°.
High clamping force for perfectly clamped joints without screw clamps and shims.
Gluing aid for a wide range of applications in furniture or interior design.

Fastest Connection

Connected in seconds with Clamex or Tenso. Connection is complete within seconds, without waiting time, clamps, or post-processing work.

The Ideal Gluing Aid

Its high clamping force means that no other gluing aids such as clamps or presses are needed when using the Tenso P.

Unmatched Clamping Force

With its 3 pairs of springs, the Tenso achieves extremely high clamping force in even the smallest installation areas.

The Tenso P-14 is primarily intended for any application where a clamped joint with adhesive will be used. Certain non-load-bearings like valances, toe kicks,scribes, or concealment panels are also great applications.

Along with standard furniture and cabinet constructions, popular applications for the Tenso P-14 also include bases, covers and other slotted connections. In addition, the Tenso P-14 is often used for pre-finished parts to prevent marks that are caused by the clamps used to force the parts together. The Tenso P-14 is also the perfect solution when it comes to connections that are difficult to clamp. It also allows excessive glue to be removed more conveniently.

Applications

Self-clamping gluing aid for furniture, shelving units, built-ins, kitchen cabinets, and face frames
Clamping Connector for concealed corner joints
Simpler and faster alternative to pipe and bar clamps
Faster gluing process; work pieces may be stacked directly after gluing
Application, adjustments and assembly are also possible on site

Size	66 x 27 x 9.7 mm
Cutter	100.4 × 7 × 22
Shell Material	Fiberglass Reinforced Plastic
Installation Tolerance	Lateral ± 1 mm
Tightening Force / Clamping Force	35 lbs. / connector

Lamello Tenso P-14 Snap in Glue Aid Clamping Connectors with Preload Clip Video
