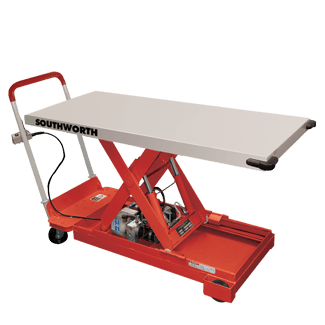

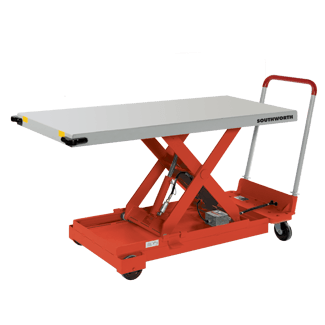

Backsaver Lite Portable Lift Tables have four easy rolling casters for unmatched maneuverability. These internal DC powered portable lift tables with integral chargers feature push button controls to quickly and gently raise and lower loads. They include many of the same features as our stationary hydraulic lift tables.
- Low pressure hydraulics
- Fast raising and lowering
- Fully adjustable down speed
- Heavy-duty torque tubes to minimize deflection
- Lubricated for life pins, rollers and bushings
- Full width straight through axles for increased stability throughout the travel range
- Heavy-duty wire braided hoses for maximum burst strength
- Tell-tale return hydraulic line prevents fluid spillage
- Built-in maintenance chocks
- Bolt-on power unit is neat, clean and allows for easy access to all components
Portable Lift Tables are available in both manual push (CLL Models) or power drive (MLL Models) configurations.
- Portable Lift Tables in Manual or Powered Drive Configurations
- 550 and 1100 Lb. Capacity
- Push button Pendant Control
- Generously Sized Platform Accommodates Large Loads
- 12 Volt DC Power with Built-in Charger
- Comfort Grip Push Handle
- Floor Lock
Model Number |
Load Capacity |
Raised Height |
Lowered Height |
Standard Base & Platform | Maximum Platform |
Motor HP |
Voltage/ Phase/HZ |
Shipping Weight |
Budget Range |
---|---|---|---|---|---|---|---|---|---|
Manual Drive | |||||||||
CLL05.5-26 | 550 lbs | 36.5" | 10.5" | 24" x 40" | 30" x 48" | .5 | 12V DC | 404 lbs | $2,500-$2,800 |
CLL1.1-26 | 1100 lbs | 36.5" | 10.5" | 24" x 40" | 30" x 48" | .5 | 12 V DC | 388 lbs | $2,600-$2,900 |
Powered Drive | |||||||||
MLL05.5-26 | 550 lbs | 37.5" | 11.5" | 24" x 50" | 30" x 50" | .5 | 12V DC | 315 lbs | $5,700-$6,000 |
MLL1.1-26 | 1100 lbs | 37.5" | 11.5" | 24" x 50" | 30" x 50" | .5 | 12V DC | 325 lbs | $6,100-$6,400 |
