Lamello Divario P-18 Metal Marking Jig with 8mm Drill Bit, 125510

Divario P-18 is a detachable connector for slide-in insertion and is anchored in the form-locking P-System groove within seconds. The connector is used to slide shelves or partitions into an already assembled cabinet. In the process, the Divario P-18 clamps the workpieces together firmly and ensures perfectly closed joints without visible connectors. Divario P-18 is used for joining shelves to divisions from 18mm panel thickness or in butt joints from 12mm and is compatible with all P-System biscuit joiners.

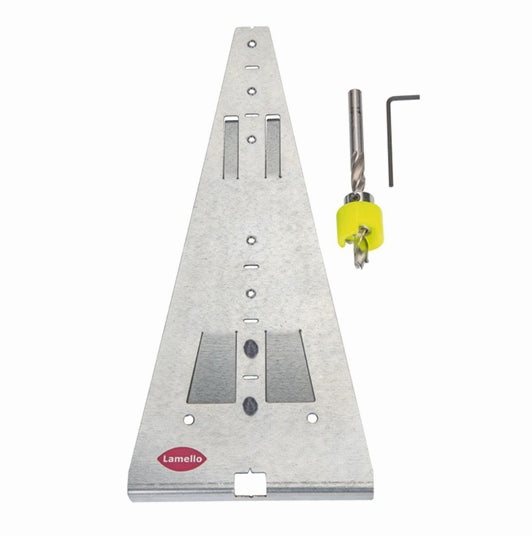

The Divario P-18 Marking Jig Includes:

• Metal marking jig
• 8mm drill bit with centering point and rotating depth collar for the precise drilling of Divario 8mm holes by hand
• Depth gauge that works with drill bit and marking jig
• Allen wrench to tighten and/or loosen the depth gauge on the drill bit
