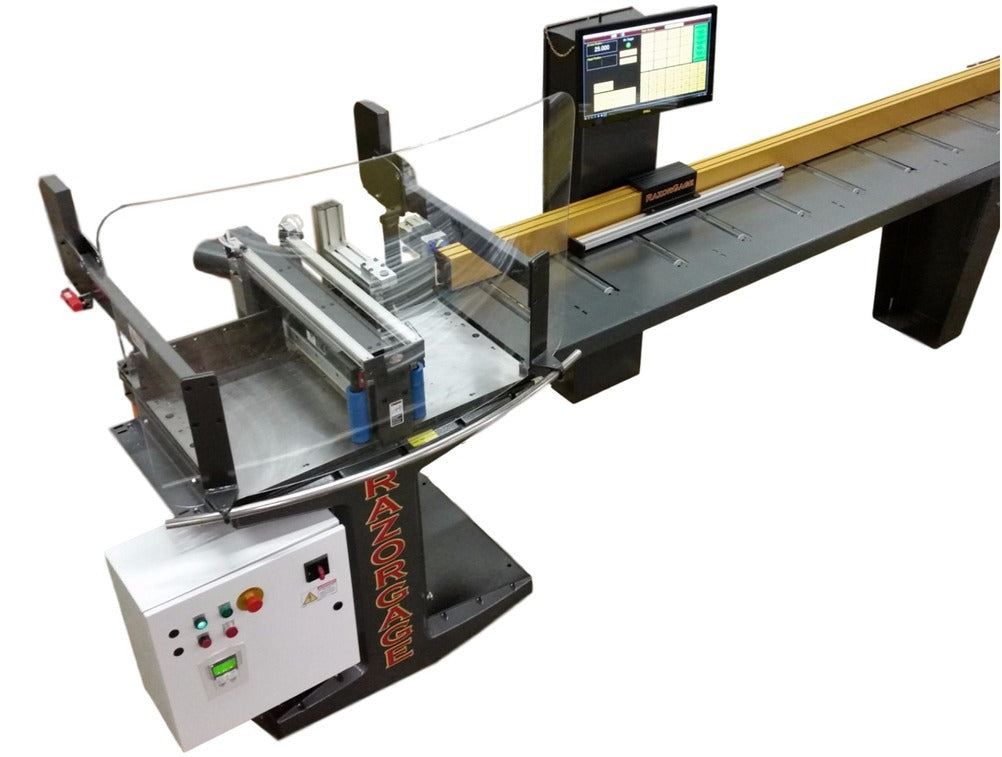

AUTOMATIC OPTIMIZING UPCUT SAW SYSTEM
The APS Automatic Optimizing Upcut Saw System is built around the powerful and highly accurate Razorgage ST Automatic Saw Measuring System and the durable, clean-cutting Cyclone 600 Upcut Saw.
The APS optimizes your cuts but the main feature is the Automatic Pusher System which allows you to push “Go” and stand back. The automatic saw does the work and allows one person to both feed the saw and stack the finished parts, with no interruption.
The Intelligent Clamping System eliminates the dangerous condition caused by half clamping the leading or trailing edge of your material, which leads to scrapped parts. The accuracy and efficiency of the cutting process eliminates mistakes which further optimizes the production flow to minimize the time required to complete the job.
Great for cutting Wood, Aluminum or nearly any non-ferrous metal. Aluminum cutting option includes aluminum cutting blade and left and right mist blade lubrication.
FEATURES
· Download cutlists directly to the RazorGage PC via Ethernet, USB drive or Wifi.
· Optimize at the machine or run pre-optimized lists from your design software.
· Sort cutlists into almost unlimited groups of like material, color, job & more, right at the machine.
· Part length accuracy varies with application but +/-.005" is possible.
· Push 200 lb at 10"/sec or lighter loads at up to 55”/sec.
· Print paper labels or inkjet print directly on the parts.
· Table surface options include solid PVC, PVC rollers or steel rollers.
· Windows Tower PC operation on a large, color touch-screen monitor.
· Optional articulated pusher mounted gripper.
SOFTWARE
This optimizing saw system comes with the ability for you to download your cutlists and use multiple criteria to sort lists into 100’s of groups. The RazorGage software is flexible, allowing you to import pre-made lists or edit and create cutlists right at the saw. Our software solutions are designed to be intuitive and able to adapt to all types of projects and applications. When you include the optional AutoList optimizing software, this saw system calculates optimal cutting solutions to maximise the yield on your material.
SPECIFICATIONS
Motor Specs: 7.5 hp (enclosed fan cooled) available in 208-230-460Vac 3-phase
Power Source: 230 VAC, 3 phase, 30 Amps 460 VAC, 3 phase, 20 Amps
Exhaust Port: Two 4" diameter (102 mm) requiring 600 cfm (17 m3 ) minimum for dry light materials. Other material may need higher velocity/pressure
Compressed Air: Requires 80 psi (5.5 bar) at 5 cfm (0.14 m3 ) air filtered to 2.5 microns (oil and moisture free). Use industrial air dryer, rated for cfm (CM) flow. No lubrication required for air components. Air must be lubricant free.
Motor RPM: Variable from 3450
Arbor: 1.000 inch
500 mm Blade for Wood: 500mm x 120T x 1” Bore x 23°ATB/5°ASF x Plate .128 x Kerf .172
500mm Blade for Aluminum: O/D 500mm or 19.68” x Kerf 3.5mm or .137” x Plate 3.0mm or .118” x Bore 25.4mm or 1.00” x Teeth 140 D Type Tip Grade Sash Pro X Expansion Slots Five.
24" Blade for Wood: 24" Dia. x 144T x 1" Bore x 23°ATB/5°ASF x Hook 22° Plate.138 x Kerf.186
24" Blade for Aluminum: 24" Dia. x 200 Teeth x 1" Bore x TCG x Hook 6° Plate.138 x Kerf.174
Push Force: 200 lb at 10 inches per second
Max Speed: 55 inches per second
Stock Length Capacity: Up to 60 feet
