The SCM Class TI 145EP is a high-precision, programmable tilting shaper designed for professional woodworking shops that demand accuracy, efficiency, and versatility. Equipped with an 11 HP, 3-phase motor (220V), this powerhouse machine offers five spindle speeds (3,000–10,000 rpm) and reverse spindle rotation, allowing for a wide range of shaping applications. The ±45.5° tilting spindle enhances flexibility for complex profiles, while the MK5 interchangeable spindle system with “T-SET” rapid tool locking ensures seamless tool changes.
For superior usability, the Class TI 145EP features powered operating unit movements with digital readouts, a spindle fence with mechanical adjustment via front-accessible handwheels, and a “FAST” section table with manual external adjustment for optimizing workpiece support. With a spacious 47.19” x 30.69” worktable and retractable tooling capacity up to 11.75” in diameter, this shaper is built for precision and adaptability. Engineered for high-performance production environments, the Class TI 145EP delivers exceptional results with ease, making it an indispensable tool for woodworking professionals.
**+ $3,200.00 Installation Required, Freight Included**

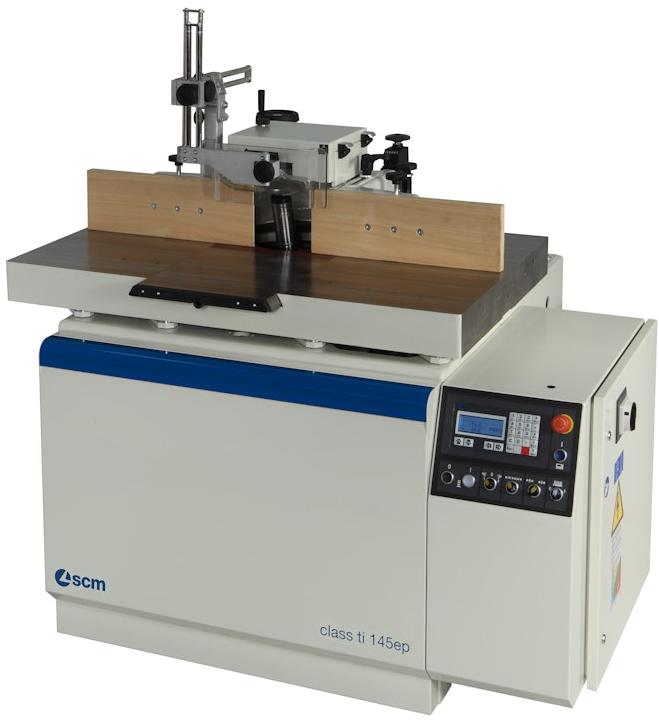

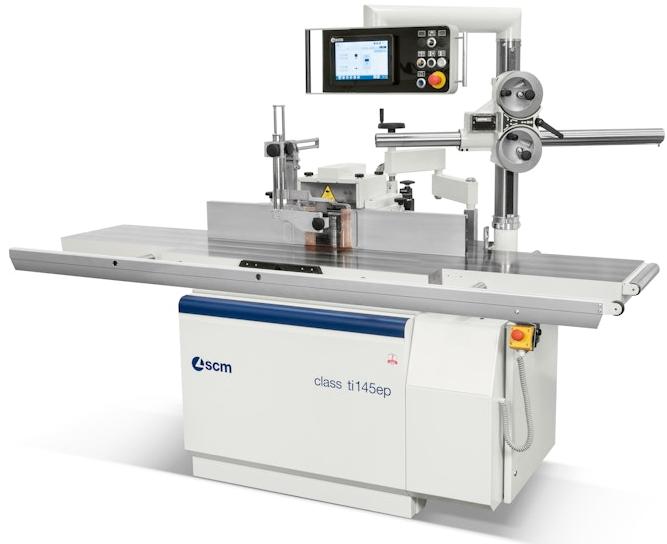

*Photo may include optional equipment
**(touch screen control, feeder support, table extension and swinging fence are not included as standard)
STANDARD EQUIPMENT
- Powered operating unit movements with digital readouts
- Spindle fence with mechanical adjustment by handwheels, accessible from the front of the machine
- Adjustment of entire fence in respect of the tool Ø
- Adjustment of entry fence for thick removal
- Mechanical readout for the adjustment
- 5 spindle speed: 3000 / 4500 / 6000 / 7000 / 10000 rpm
- Reverse spindle rotation (with electrical interlocking for reverse operation)
- MK5 interchangeable spindle with presetting for the “T-SET” rapid tool locking
- Direct motor start
- "FAST" section table, with manual external adjustment
- Replace the table rings and optimize the workpiece support
TOOLING INCLUDED
- Qty. 1 1 ¼” spindle
- Toolbox: Wrenches, allen wrenches, user manual, spare parts catalog
SAFETY/PROTECTIONS
- Emergency pushbutton
- Safety microswitch on motor access door
- Overload switch protection
- Mechanical brake on main motor
- "CSA" rated electrical components, including cables
- Main power switch can be locked in the off position with a padlock
- Auxiliary low voltage circuit (110 volt)
