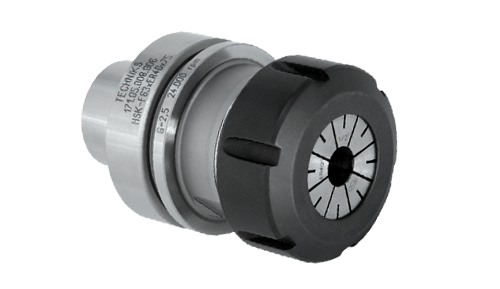

Techniks 31025F HSK 63F x SYOZ 25 - 80mm, Slotted Nut Toolholder
Click or scroll to zoom
Tap or pinch to zoom
Techniks 31025F HSK 63F x SYOZ 25 - 80mm, Slotted Nut Toolholder
Techniks 31025F HSK 63F x SYOZ 25 - 80mm, Slotted Nut Toolholder

Techniks 31025F HSK 63F x SYOZ 25 - 80mm, Slotted Nut Toolholder

by Techniks
$177.00 USD
SKU TK31025F
 More payment options

The Techniks 31025F HSK 63F x SYOZ-80mm Slotted Nut Toolholder is a critical tool for machining operations that require precise and reliable performance. With its slotted nut design and HSK 63F x SYOZ compatibility, this toolholder offers increased rigidity and stability during machining operations.

This toolholder is designed to provide compatibility with a wide range of tools, making it a versatile tool that can be used for multiple machining operations. The slotted nut design provides added stability and rigidity during machining, making it an ideal tool for machinists looking to achieve precise and accurate results.

Features

  • Balanced to 25,000 RPM at G2.5
  • Maximum 0.0001″ T.I.R. measured from taper to collet pocket
  • PowerCOAT Nut increases holding power by 75%
  • Includes slotted collet nut, #83632

Collet Type: SYOZ 25

Toolholder Style: HSK63F

Gage Length: 80mm

Diameter: 60mm

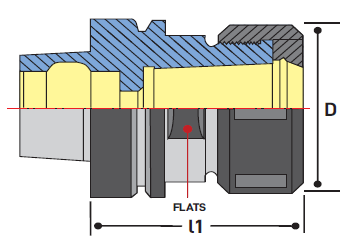

Technical Data

Collet Series SYOZ25
Body Dia-Workpiece Side (in) 1.378
Body Dia-Workpiece Side (mm) 35
Gage Length (in) 3.15
Gage Length (mm) 80
Gage Length-Face Contact (in) 3.15
Gage Length-Face Contact (mm) 80
Lock Nut Diameter (in) 2.36
Lock Nut Diameter (mm) 59.9
Overall Length (in) 4.13
Overall Length (mm) 104.9
Material 8620 Steel
Taper HSK63F
Overall Diameter (in) 2.48
Overall Diameter (mm) 63
Unit of Tool Metric or Inch
Type Taper Shank Collet Chuck
Style Single Ended
Capacity Range (in) 0.125" - 1"
Capacity Range (mm) 3.2 - 25.4mm
Balanced to 25,000 RPM at G2.5
