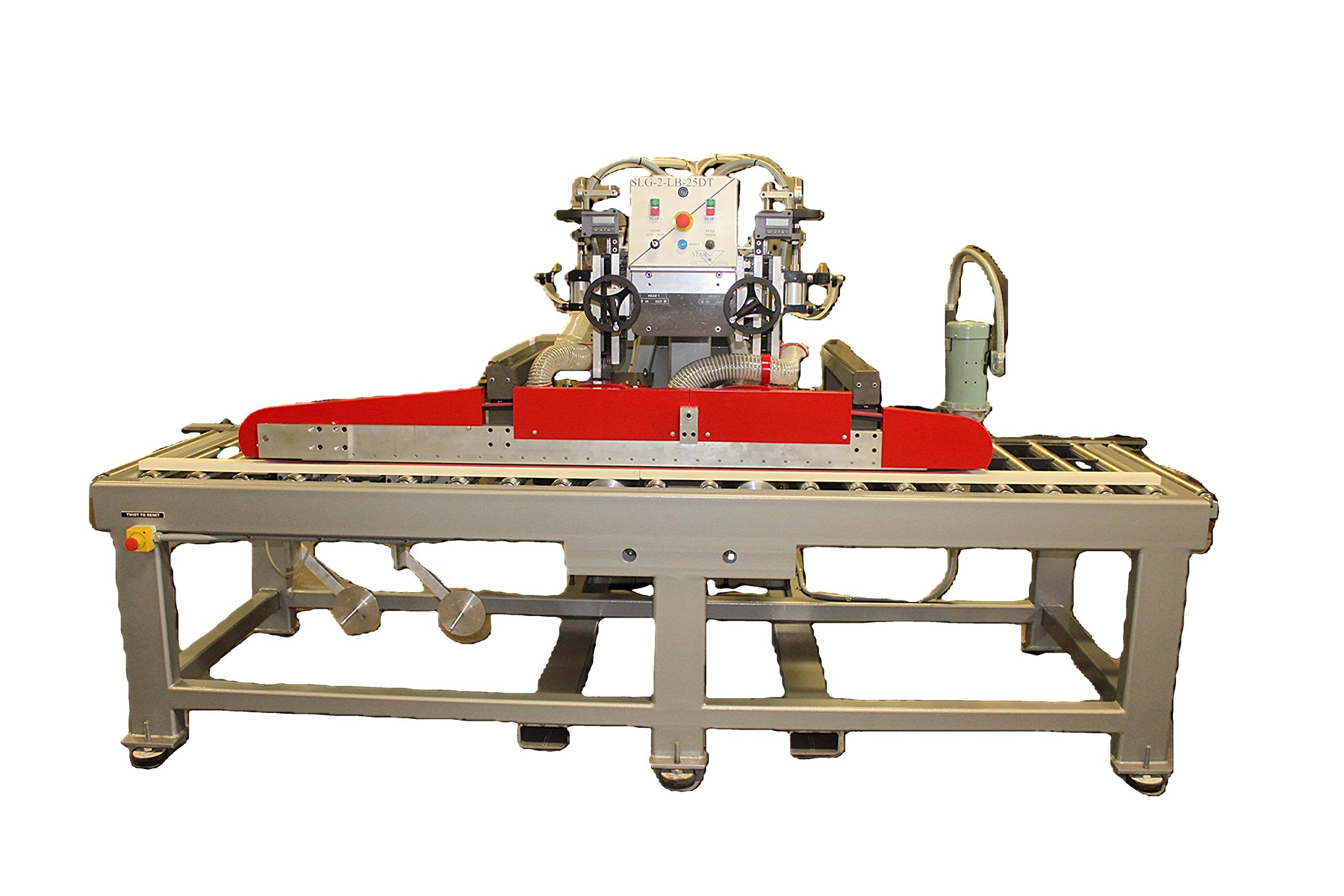

The Model SLG-2-LB is our entry-level 2-head open sided V-Groover as the logical development of the single head version. It has the same performance parameters as the model "SLG-2000" since the main machine components such as cutter head motor, feeder system, tape applicator and frame construction are the same as it big brother's. However the precision roller table is being replaced by the phenolic flat table top. The SLG-2-LB is one of the most popular with Solid Surface, Architectural Millwork and Store Fixture companies.
This machine will be well suited for the Solid Surface Fabricator who needs zero downtime when cutting (2) different in short runs such as front build-up, cove back slash, rebate cut for SSV or triple-fold profile, who is willing to sacrifice convenience for a lower price.
Some of the key data and features for this model are
- (2) 10 HP-3,600 RPM Motor
- 3 HP Hydraulic feeder unit
- 4" Minimum to unlimited part width
- 20" Minimum to unlimited part length
- 16" Maximum throat clearance for linear & cross cuts
- 6" Diameter solid aluminum reference roller
- Linear rail and ball screw for head up& down and manual side movement
- Manual feeder height adjustment for optimal traction
- 1/2" Thick phenolic table cover
- Mechanical anti-kick back device
- Emergency shut off line along the table length
- Automatic tape applicator
- 2 Year warranty
- Star "V" Customer satisfaction assurance
