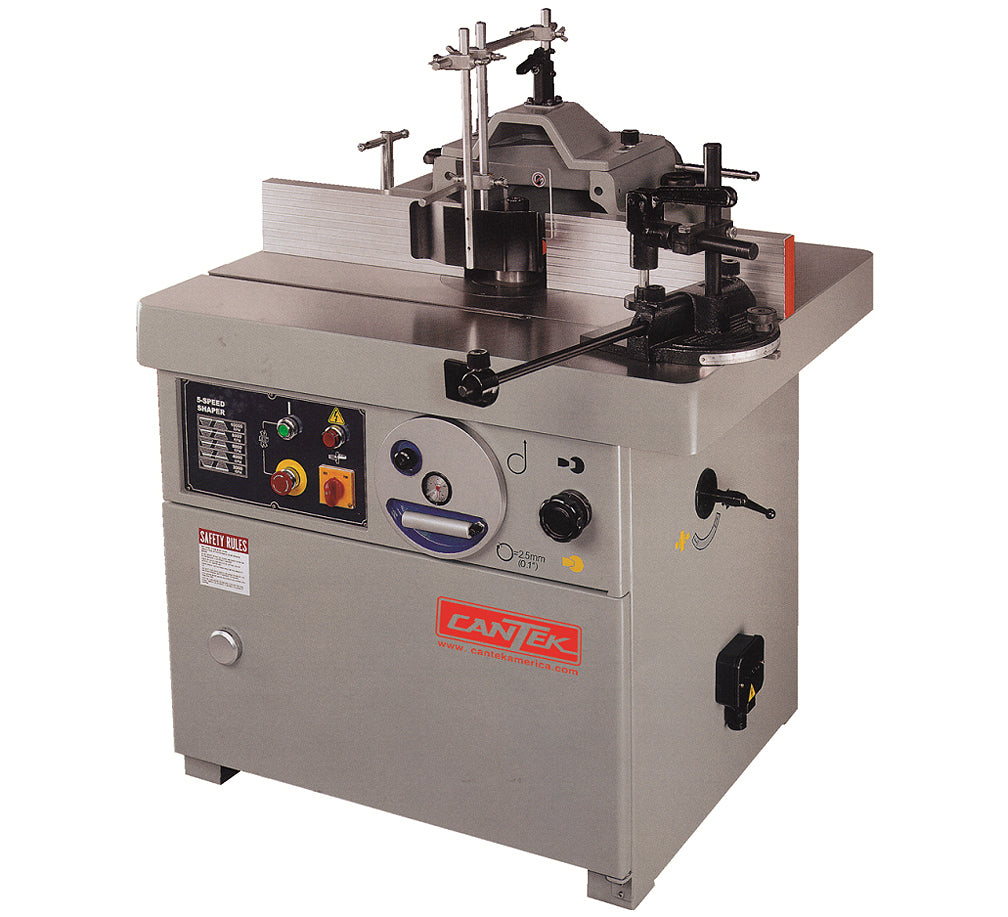

· Cast iron ground & polished table with insert rings
· Precision ground and electronically balanced spindle
· V-belt drive with 5 feed speeds is easily accessed from the front of the machine
· Electric spindle brake for added safety
· Spindle lock - with limit switch safety, machine will not start with lock engaged
· Micro spindle height adjustment with dial indicator
· Interchangeable cutter spindle
· Forward/reverse spindle rotation
· Adjustable "finger" type fence
· Independent micro-fence adjustment on both sides
· Includes the following standard equipment: 1 ¼" spindle, dust connection chute, safety guard, tenon jig, and Telemecanique magnetic controls
Table size 31 ½” x 39.4”
Spindle speeds (5) 3000/4000/6000/8000/10000 RPM
Spindle taper 5 MT
Spindle diameter 1 ¼"
Motor 7.5 HP
Largest diameter of cutter:
Above table 8 ¼”
Below table 13 ¼”
Fence size 6” x 43”
Vertical spindle stroke 7”
Useable length of spindle 5 ½” long
Electrics 230/3/60 = 22 Full Load Amps
Dust port (1) 5”
Total HP 7.5 HP
Net weight 1034 lbs.
Machine dimensions 48.4” x 39.4” x 52 ¾”
Shipping weight 1166 lbs.
Shipping dimensions 45 ¼” x 37” x 41”
