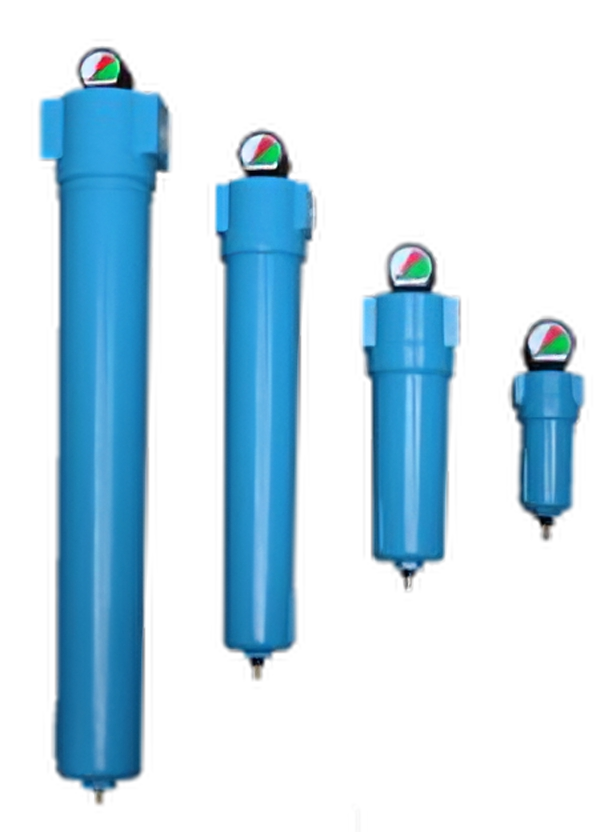

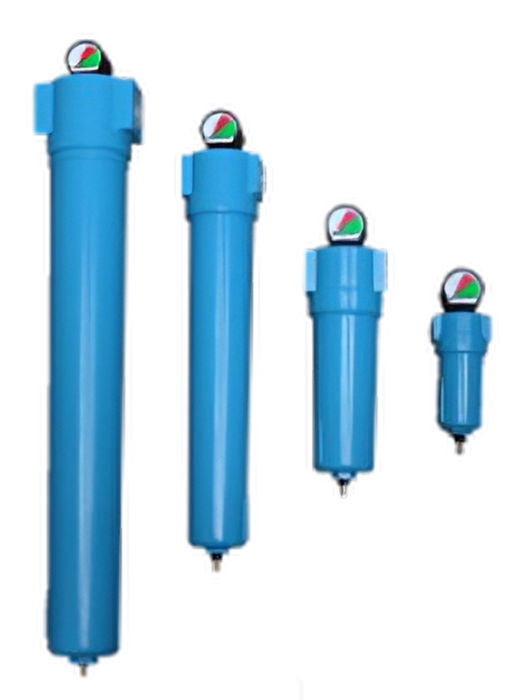

FHO Filter housings come in standard with a differential pressure gauge and automatic float drain. All filter housings are 100% aluminum with an exterior power coat finish. All coalescing filter elements utilize a pleated media design to increase surface area. The higher surface area decreases pressure drop and maximizes the element’s contaminant holding capacity.
Brochure for FHO & SHO Inline Filtration & Separation
Filter housing easily connect without fittings or transitions
Replacement Filter Elements
Particulate Filter Element (P)
- Particulate removal
- 99.99% efficiency
- Particulate removal down to 3 microns
Utility Grade Coalescing Filter Element (UC)
- General compressed air filtration
- 99.99% efficiency
- Particulate removal down to 1 micron
- Nominal pressure drop 0.75 PSID
- ISO 8573 (Class 2)
High Efficiency Coalescing Filter (HE)
High quality compressed air filtration
99.99% efficiency
Particle removal down to 0.01 micron
Max oil carryover 0.0008 PPM
Nominal pressure drop 0.5 PSID
ISO 8573 (Class 1)
Activated Carbon Filter Element (AC)
High Purity extended surface area activated carbon removes hydrocarbon mist and vapor
Nominal pressure drop 1.2 PSID
Max oil carryover 0.002 PPM
2 in 1 Filter Element (21)
- Particulate removal or coalescing prefiltration
- 99.99% efficiency
- Particulate removal down to 1 micron
- Nominal pressure drop 0.5 PSID
SHO Series Moisture Separators with Float Drain 45-460 CFM
This fully automatic drain is designed for discharging of condensate or any other non-aggressive fluid from a compressed air system. It is heavy-duty aluminum and is equipped with an external float drain.
