GKS Robots are battery-powered dolly systems that allow for easy movement of heavy equipment or machinery throughout a facility or assembly line. Your ultimate solution for effortless and efficient material handling in industrial environments. This battery-powered industrial dolly system is designed to streamline your operations, enhance productivity, and reduce manual labor, all while ensuring safety and precision.

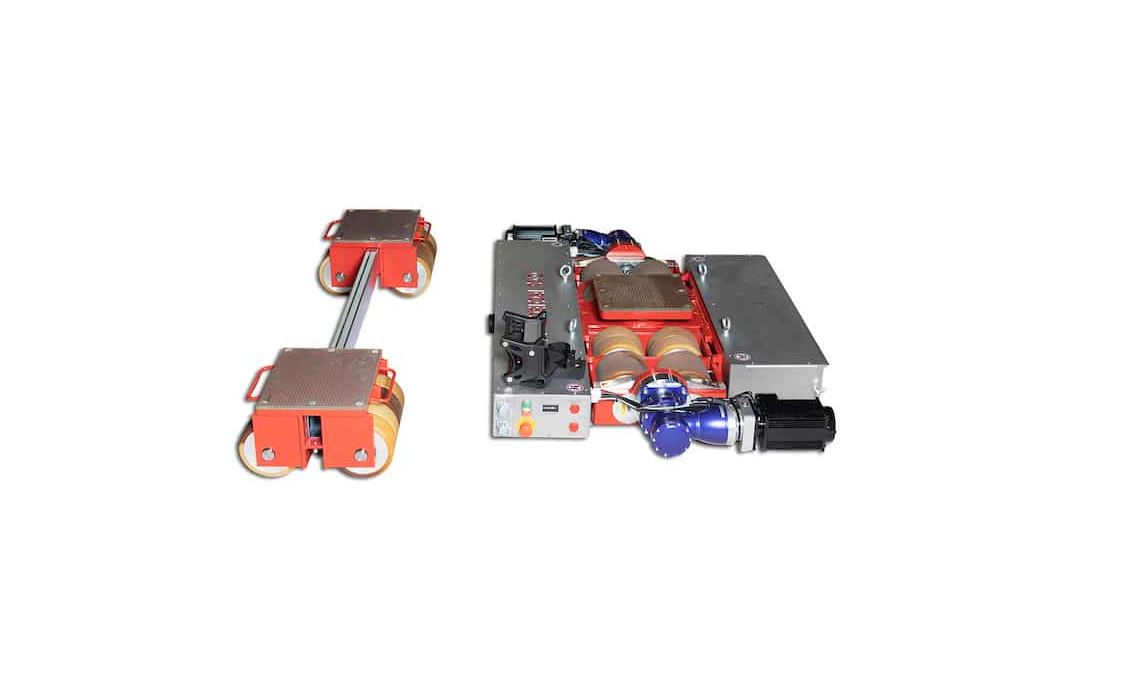

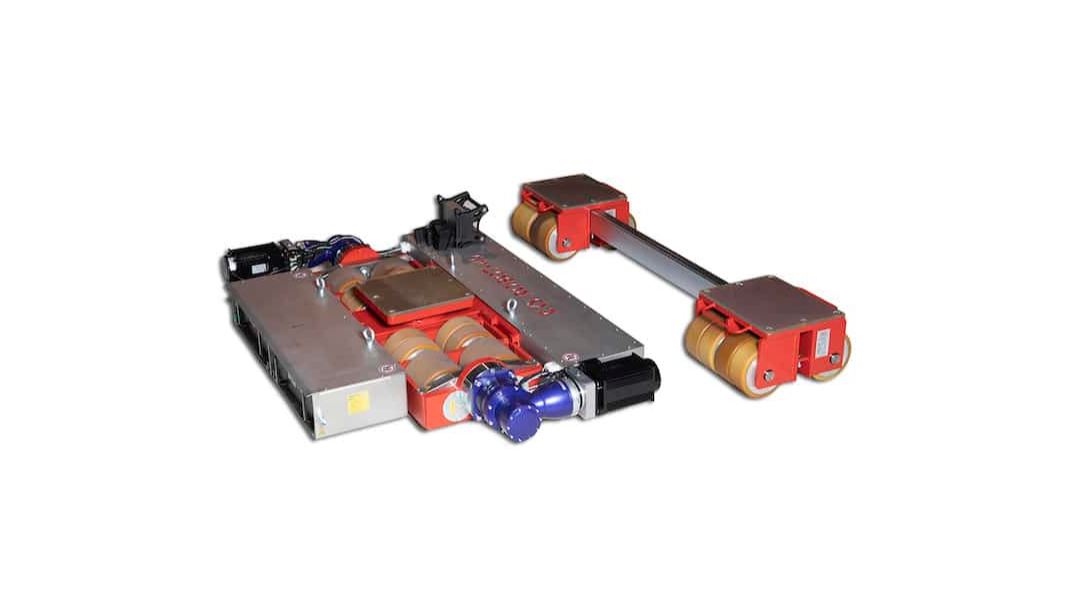

GKS Robot 40 Product Information
Features:
- Max. load capacity is 88,000 lbs. (40 tons)
- Powered by a lithium polymer battery
- Remote control that allows for both simultaneous steering and driving
- Can move up to 20 ft/min
- Loading height of 9.8″
- Simultaneous steering and driving
- Remote control allows you to be your own spotter, no need for a towing device
- Less manpower needed to move the load
- No cords to deal with
- Easy battery replacement—can even be done while under load
- Battery packs are exchangeable at the front of the dolly during operation
- No exhaust from propane- able to be used more places
- Straight line driving function to keep ROBOT moving perfectly straight
- Optional: Lift table to lift the load directly from the ROBOT
- 2 year/900 hour warranty
Technical Specifications:
- Weight: 950 lbs.
- Load Capacity: 88,000 lbs. (40 t) 400kN
- Drive: DC Motor (24 V / 1.5 kW)
- Battery Type: Li-Lonen
- Battery Life: 4-6 Hours
- Speed: Min: 10 ft/min, Max: 20 ft/min
- Incline Max: 3%
- Loading Height: 9.8" (250mm)
- Number of Special heavy-duty wheels L-ROBOT: 4 (Drive) + 8 (Supporting) (6" / 3" / 154 + 76mm wide)
- Number of Special heavy-duty wheels F-Dolly: 16 (3" / 76mm wide)
- L-ROBOT Dimensions (L x W x H): 45.4 x 68.8 x 9.8" (1153 x 1748 x 250mm)
- F-ROBOT Dimensions (L x W x H): 17.6 x 63 x 9.8" (447 x 1600 x 250mm)
- Contact surface L-ROBOT: 12.5 x 12.5" (320 x 320mm)
- Contact Surface / Cassette: 12.2 – 15" (310 x 379mm)
- Connecting Bar, Adjustable: 1.4' – 5.3' (440 – 1600mm)
- F Dolly Weight: 1022 lbs. (460 kg)
- L-ROBOT Weight: 254 lbs. (115 kg)
