Lamello Clamex P-10 Detachable Connector for materials from 12mm thickness

Clamex P-10 Detachable Furniture Connectors, with Lockable Cam Lever using Allen Wrench for Material Thicknesses of 13mm+

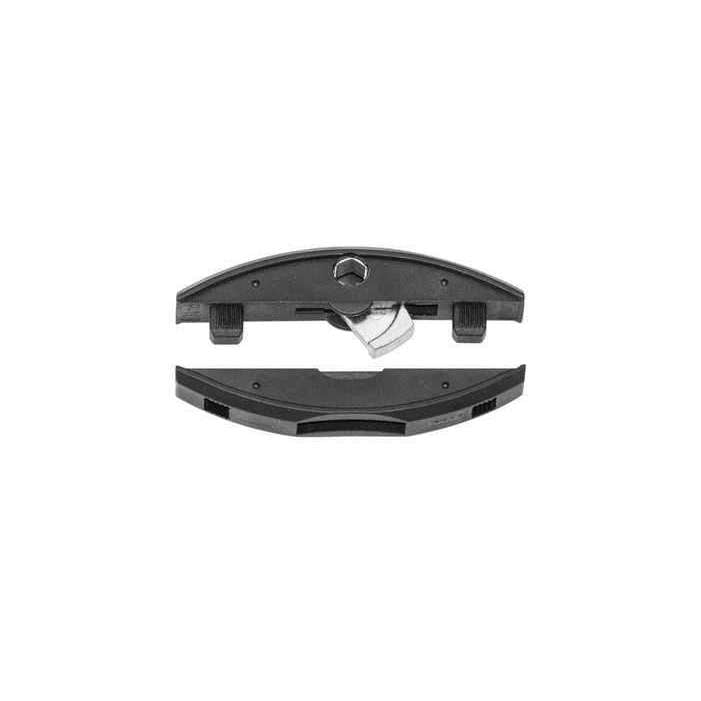

Clamex P-10 is a detachable, two-part connector with an internal cam lock which is engaged with a lever. Compared to Clamex P-14, Clamex P-10 has a shallower installation depth of just 10 mm and is therefore may be used in thinner material. The design of the connector is enhanced by two torsion tabs, which offer strong dimensional stability.

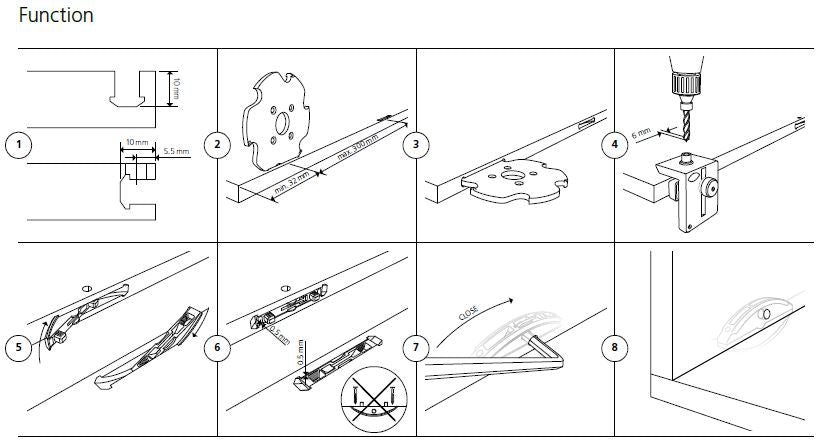

The form-locking P-System enables strong connections in the workpiece without the need for tools in just seconds. Clamex P does not require glue or screws, and offers numerous benefits in the manufacturing process while also distinguishing itself from standard connecting hardware. Uses Zeta P2 depth setting 10, connector depth of 10mm on each is required.

Description

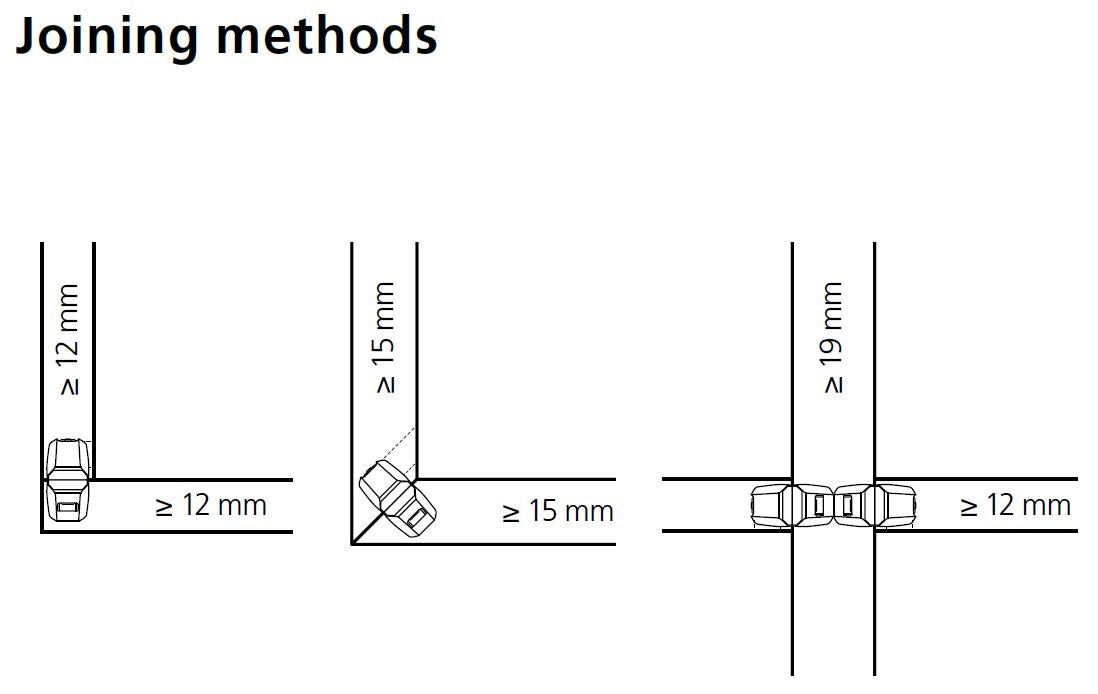

• Clamex P-10 is an addition to the P-System joining system for material as thin as 13mm (1/2")

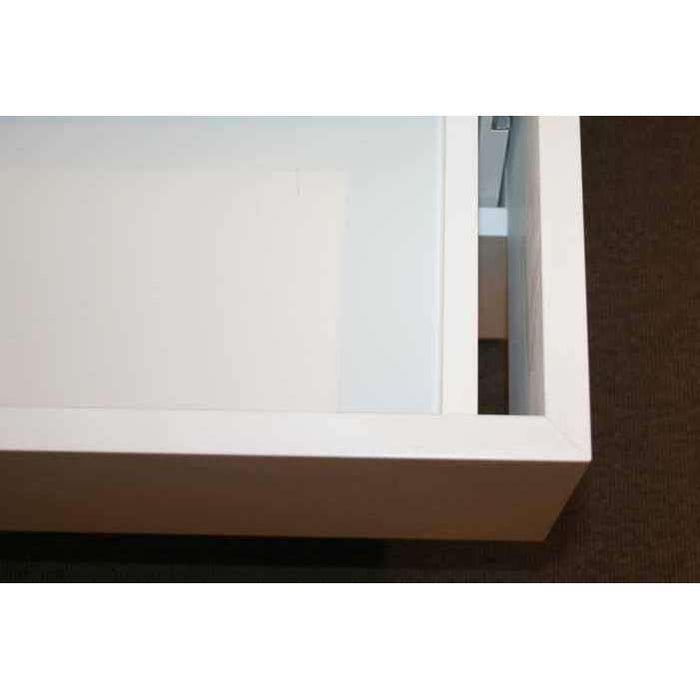

• Mitered connections in materials as thin as 15mm (9/16")
• Clamex P is a detachable, high-strength joining system that connects within seconds
• Join wood using the Zeta P2 power tool or a CNC machine
• Clamex P-10 may also be used to clamp outside crown moulding miters with a minimum thickness of 15mm (9/16")

Benefits

• Minimal installation depth for material as thin as 13mm (1/2") for surface or corner joints
• Detachable miter connector for 30-180° angles in material thickness of at least 15mm (9/16")
• Nearly invisible with its 6mm tool opening
• Fast tool-free installation of connectors
• Stackable for transport with connectors pre-installed
• High clamping force for gluing components at all angles
• Lateral tolerance for efficient installation with the Zeta P2 biscuit joiner or a CNC machine

Applications

Due to its small size, the Clamex P-10 can be used in 13mm materials such as plywood, solid surface or HPL as well as for miter joints in 16mm thick materials.

• Ideal for miter joints in 16mm panels for furniture making, shop fitting or kitchen manufacturing
• Detachable or fixed connecting fitting for toilet partition systems or caravan interiors using thin 13mm materials
• Glueing aid for miters and angle joints ranging from 30-180°
• Aesthetic alternative to standard connecting fittings
• Rapid prototype construction before starting new furniture range
• On-site adjustments and assembly

Technical Specifications

Size: 52 × 19 × 9.7 mm
Cutter: Ø 100.4 × 7 × 22
Shell material: Fiberglass reinforced plastic
Lever material: Zinc die cast
Installation tolerance: Longitudinal ± 0.5 mm
Tensile strength:
Particle board: ~ 600 N
MDF: ~ 600 N
Beech: ~ 900 N
Material Range: Particle Board, MDF, Plywood, Softwood, Hardwood, Etc.
