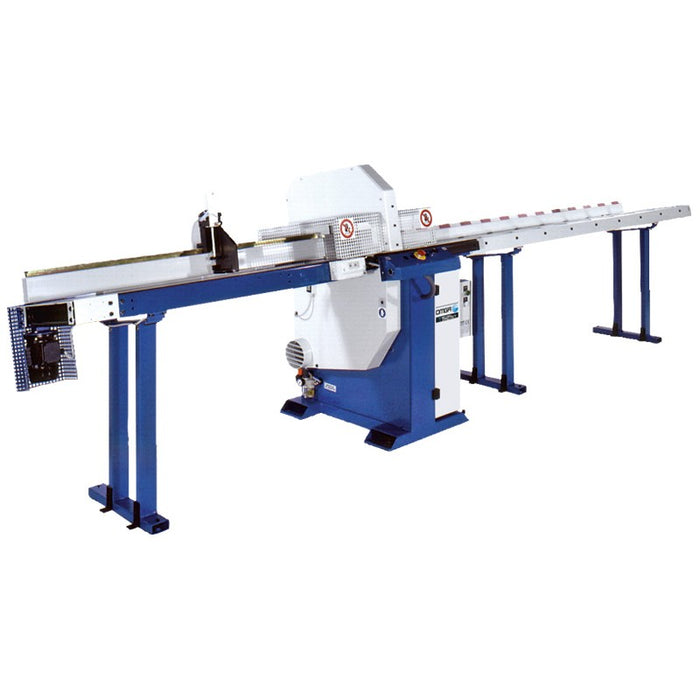

18" Cut-Off Saw 6HP Motor 12 5/8" Cross Cut Capacity.
MORE INFO

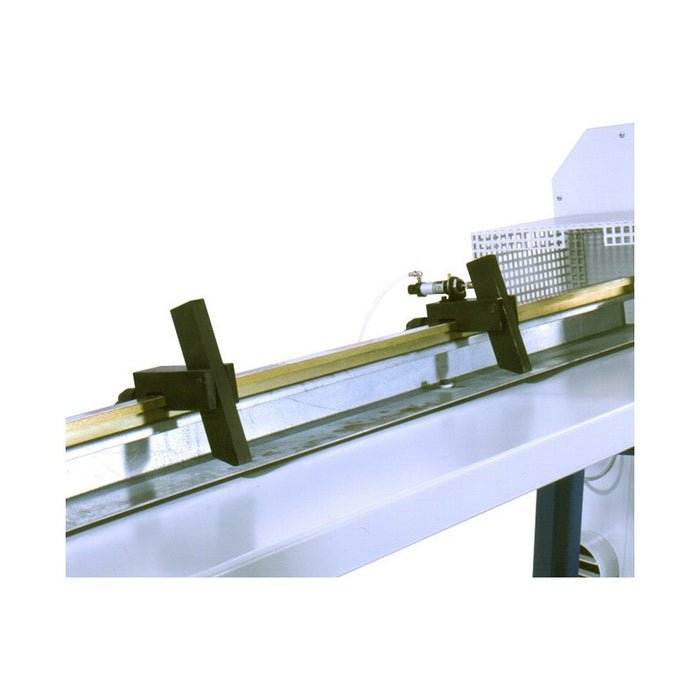

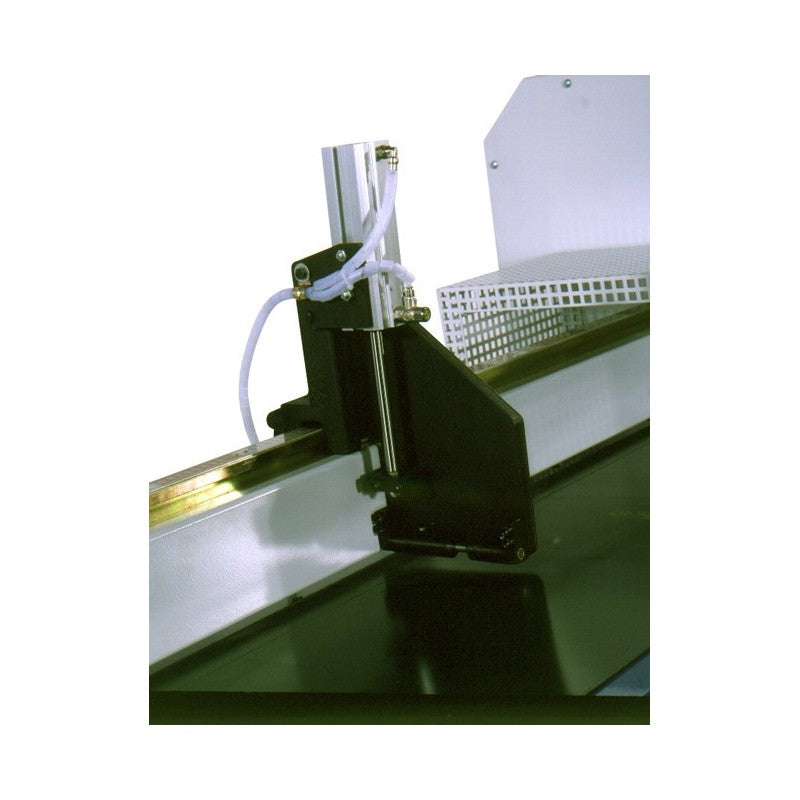

Pneumatic adjustable speed pop-up chop saw, pneumatically activated. Automatic workpiece clamping in cycle with blade stroke. The clamp also acts as the blade guard and ensures total safety for the operator. The unit is best suited for length cutting and defect removal. On request T 521 ST can be equipped with infeed and out feed roller table wit scale for positioning of manual or pneumatic flip over stops.
Arbor speed RPM | 3200 |
---|---|
Dust Chute | 6" |
Max. cutting width | 12 5/8" |
Max. cutting depth | 5 1/2" |
Motor power | 6 HP |
Saw blade bore | 35 mm |
Saw blade diameter | 18" (20" Opt.) |
Overall dimensions | 28" x 37" x 39" |
