Omga RAS Series RAS 1250

Omga RAS Series RAS 1250

by WSI Machinery
$17,605.00
Payment Calculator
Financing Request
SKU

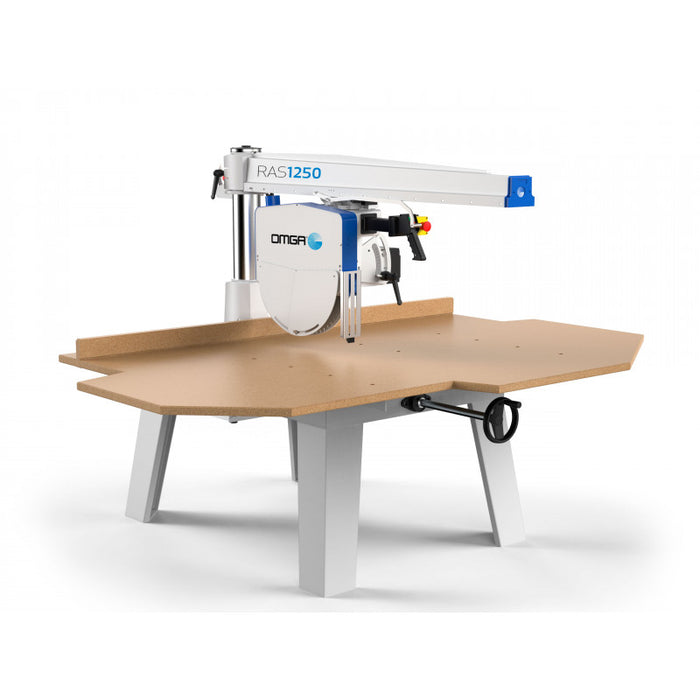

20" Radial Arm Saw 7.5HP Motor, 44" Cross Cut Capacity, 56" Rip Capacity. Cast Iron Arm.



MORE INFO

These precision radial arm saws are very versatile, multi-purpose machines. This versatility is due to the possibility of swiveling and tilting both in the horizontal and vertical axis which makes the machines especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops.

Max. Depth of cut 45 Deg. 4 3/4"
Motor power 7.5 HP
Saw bore 1"
Saw Diameter 20"
Arbor speed RPM 3400
Bevel positive stops 0-45
Cross cut capacity 44"
Table Size 94" x 62"
Max. Depth of cut -90 6 3/4"
Miter positive stops 45-0-45
Overall dimensions 94" x 62"
Ripping capacity 56"
Shipping Weight Lbs. 1012
Crated Dimensions 96" x 30" x 49"
