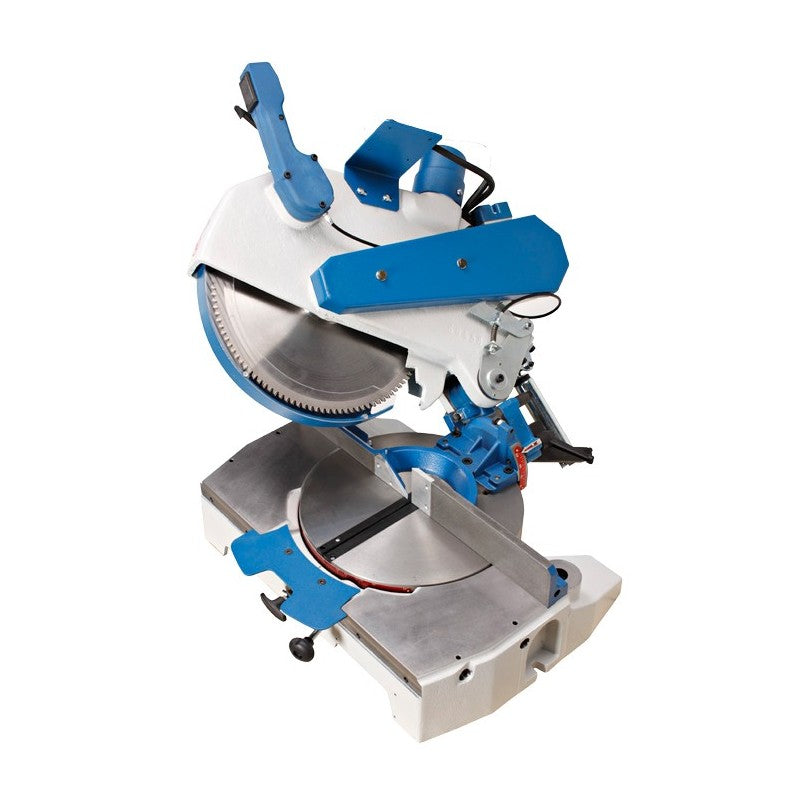

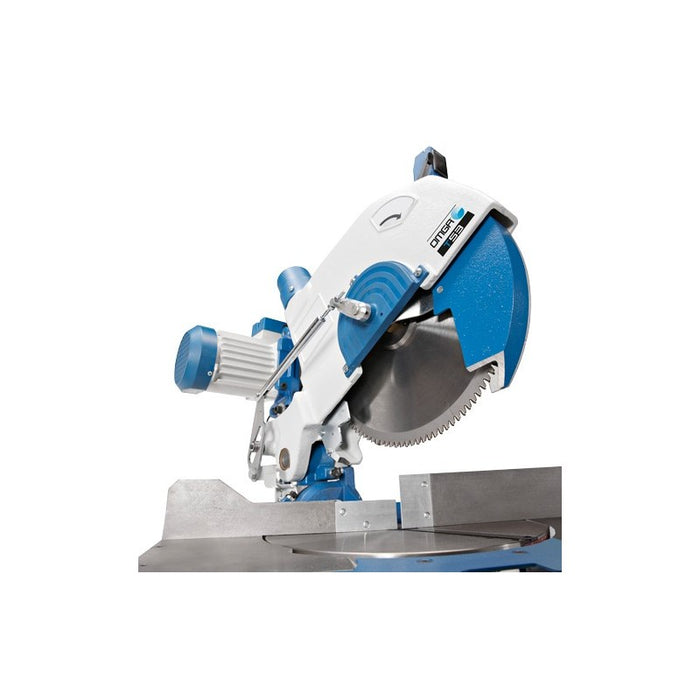

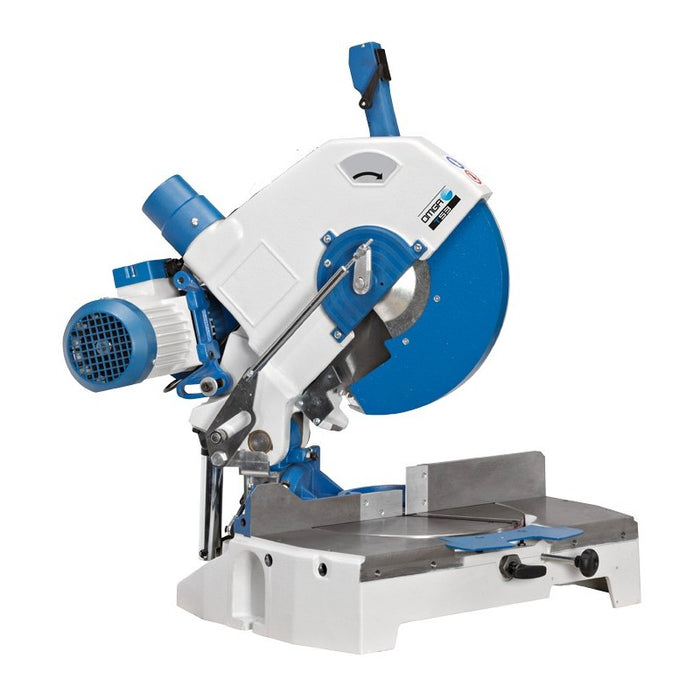

14" Compound Mitre Chop Saw 4HP Motor Width Cutting Capacity 6 11/16" Thickness Capacity 4 5/16".
MORE INFO
Heavy duty and flexible are the two main features of this Compound Precision Mitre Chop Saw. Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The unit is also equipped with a 45 degree positive stop for precision beveling. The belt driven transmission and a powerful 4 HP induction motor make the T 53 370 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multi-purpose machine suitable for use in general carpentry, for cutting crown moulding, picture frames, furniture components and any application requiring precision cutting.
Cross cut capacity 90 Deg. | 6 3/4" |
---|---|
Cross cut capacity 45 Deg. | 4 3/4" |
Max. Depth of Cut | 4 5/16" |
Max. Depth of cut 45 Deg. | 2" |
Motor power | 4 |
Max. Beveled Cross Cut | 6 3/4" |
Saw bore | 1" |
Saw blade diameter | 14" |
Arbor Speed RPM | 3200 |
Dust Chute Diameter | 3 1/8" |
Table Size | 23 5/8" X 17 1/8" |
Shipping Weight Lbs. | 255 |
Crated Dimensions | 28" X 28" X 33" |
