by SCM
$0.00
SKU WSI-SCMSI3BO

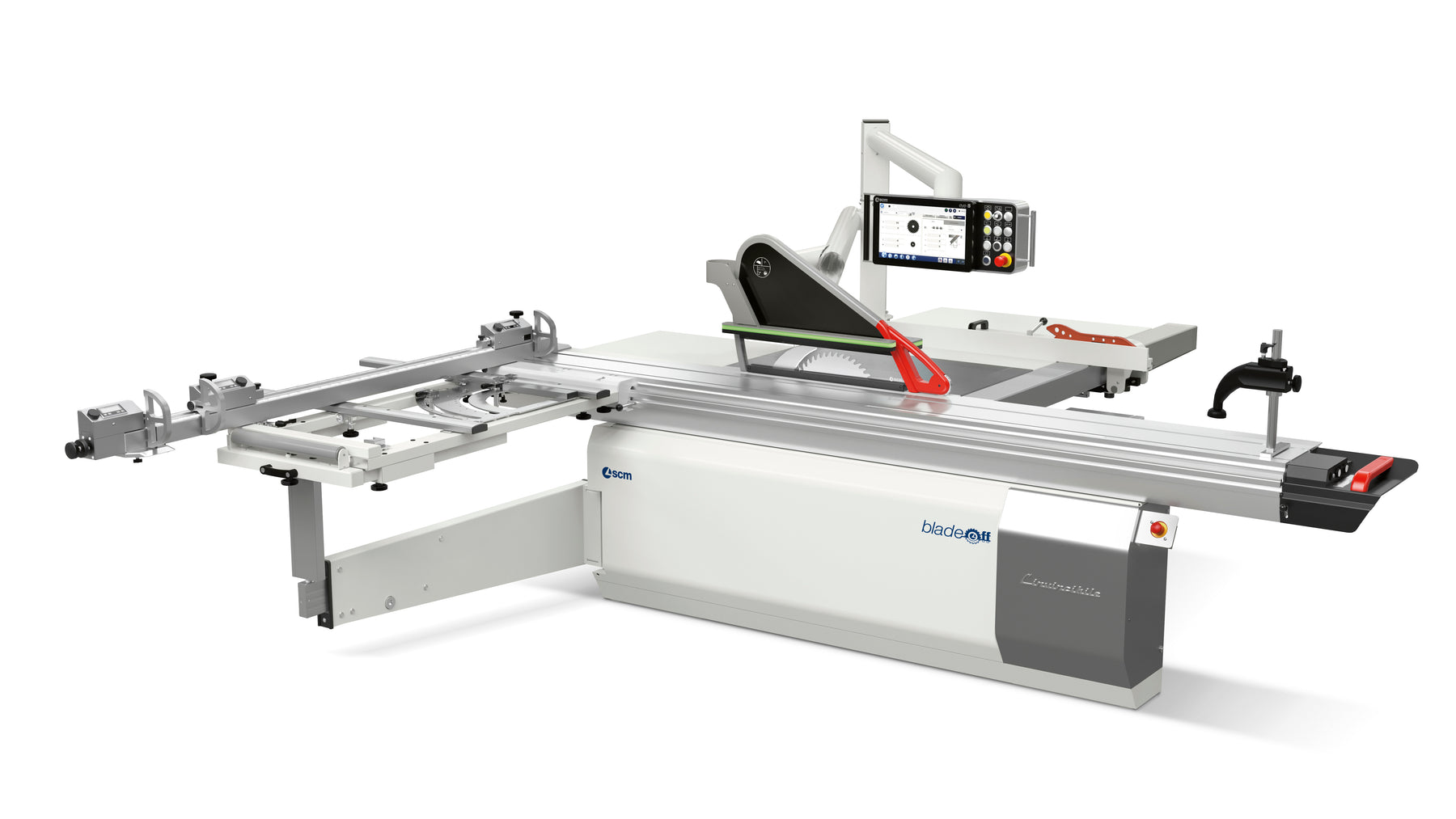

L'invincible SI 3 Blade Off Sliding Table Saw

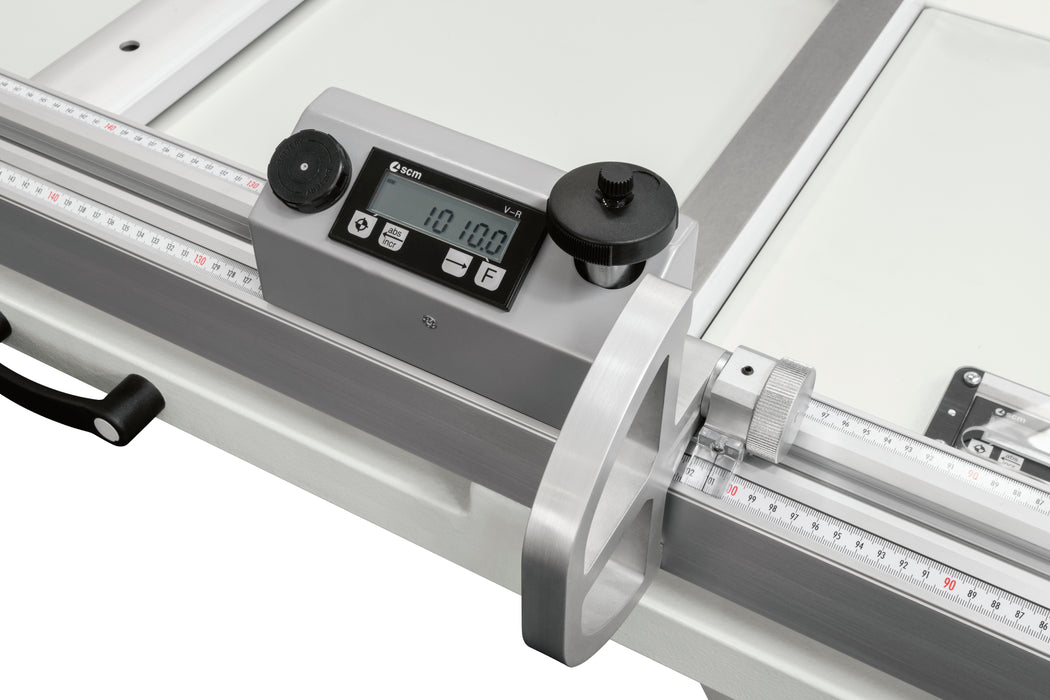

220V, 3ph, 15 HP, 10.5' Slider, Tilting 16" Blade, 63" Rip Capacity, 15" EYE-S Controller (5NC Axis), CompeX + 3 DRO Stops.

Requires Installation of $3,200

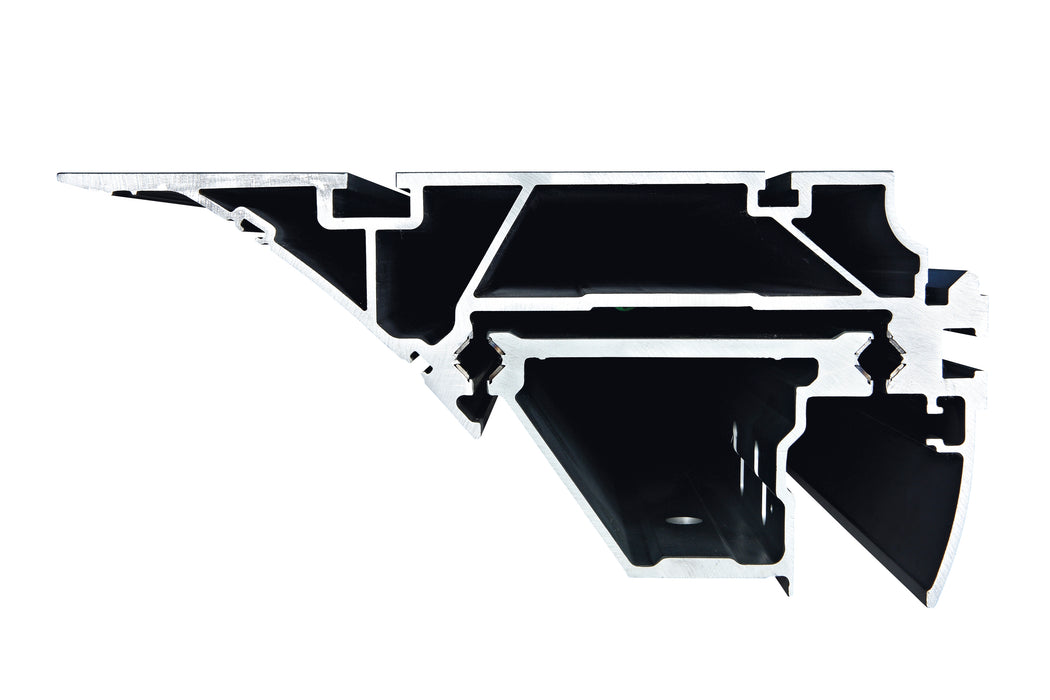

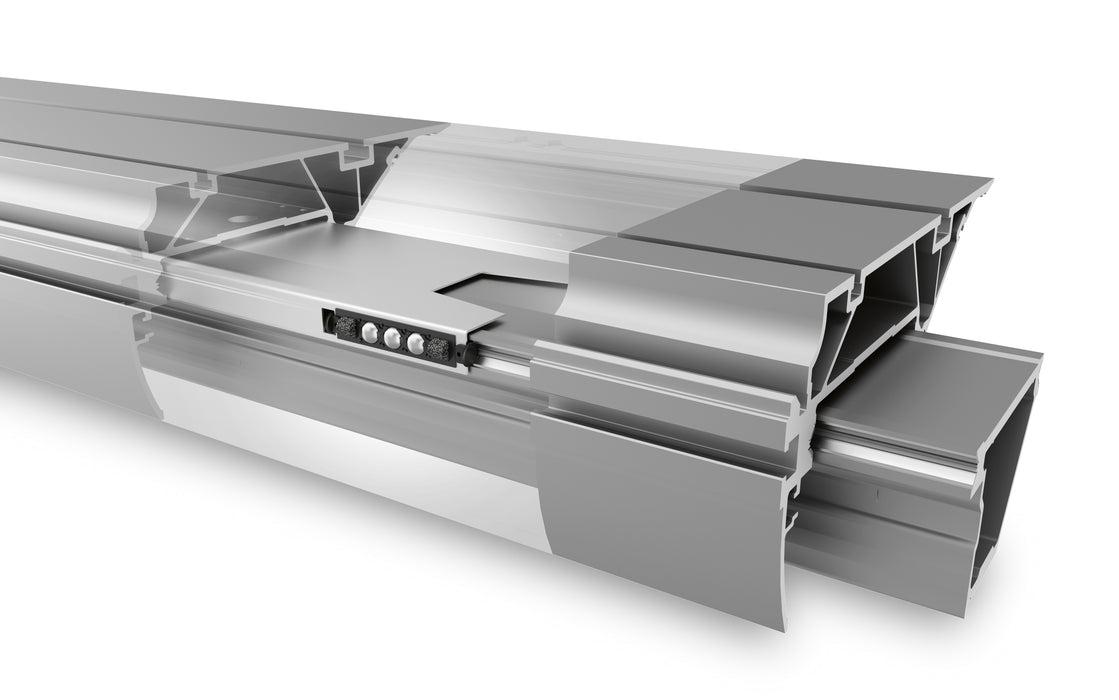

Sliding Carriage

The anodized aluminum alloy carriage will never require adjustment and thanks to its structure with arch-ground hardened steel slideways (SCM exclusive and patented solution) it can bear loads four times higher.

Furthermore, the "arc" profile of the slideways ensures:

  • No Play and no need for adjustments over time
  • Higher loading capacity
  • ± 0.05mm tolerance on the entire carriage length for straight and high quality cutting
  • 10 years of SCM guarantee for the carriage sliding system

Optimizer/Sequencer App for Tablet: SCM Thundercut

Application to be downloaded from the App Store or Play Store on compatible tablets (mobile devices) equipped with iPadOS or Android operating systems.

It can be activated using the QR code supplied with the machine. The app allow for:

  • Managing your machine stock and the material and panel magazine
  • Create and modify projects, import projects from the main furniture design software ("cpout" file format), import cutting lists
  • Optimize cutting lists, choosing from one or more proposals of the optimization software integrated into the App
  • Set the machine correctly for each cut to be made, thanks to the simple and intuitive graphics of the 3D sequencer that guides the operator at each step
  • Print labels with barcodes to identify the various parts, thanks to the Bluetooth connection with compatible label printers

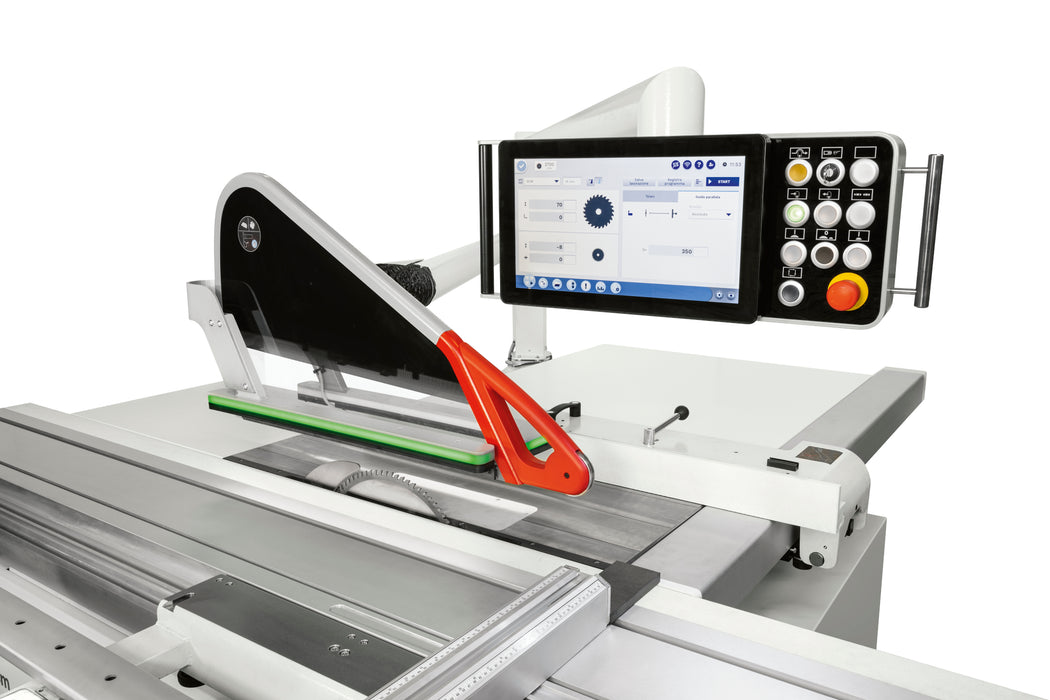

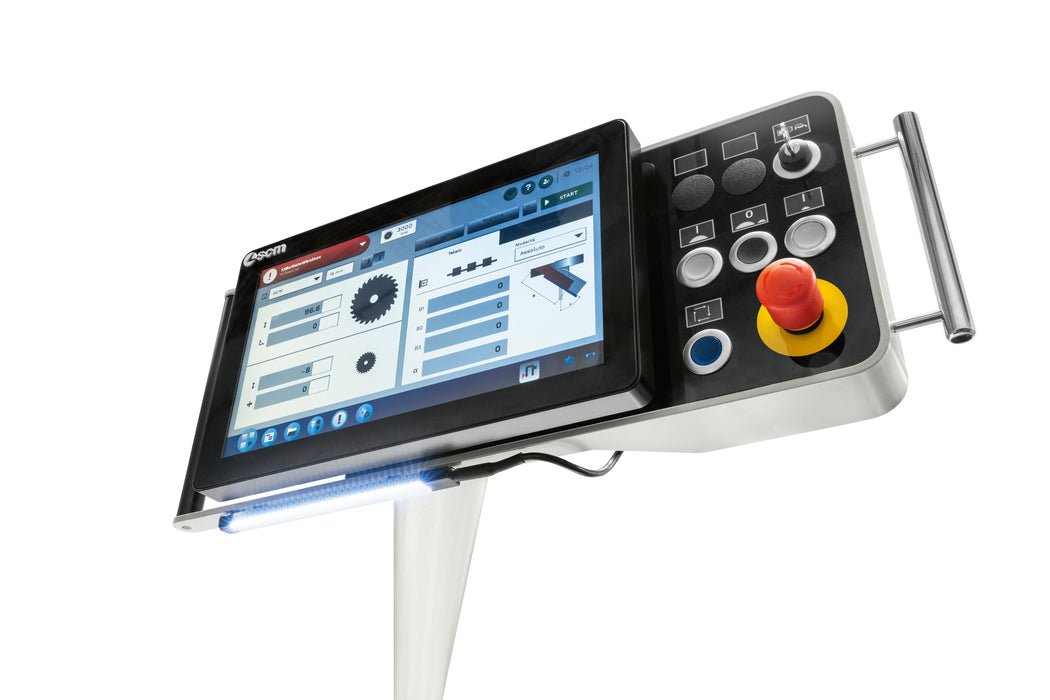

"EYES-S 15" Electronic Control Panel

Main Features:

  • 15" touch screen display
  • Direct control of the following working axes with manual, manual incremental, semi-automatic, automatic modes:
    • Main blade lifting, saw blades unit tilting, parallel fence movement
  • Blade speed, with reference to the blades database
  • Operator's help functions for the carrying out of complex cutting
  • Storage capacity up to 1000 programs
  • Cut sequencer of the pre-loaded parametric working programs
  • Environment for the creation and storage of the new sequenced working programs
  • Automatic acquisition of the work quotas from the Thundercut
  • USB port
  • Pre-set for Network Connection

Operator's Assistance Function on Electronic Control with:

  • Selection of the stop correct positioning on the squaring fence when carrying out cuts with tilted blade
  • Selection of the stop correct positioning on the fence when carrying out cuts with angled fence on the worktable, with or without tilted blade

Overhead Mobile Control Panel

Independent Powered Scoring Unit

Electronic Scoring Unit Adjustment of the motor-powered movement of the horizontal and vertical positioning of the scoring blade

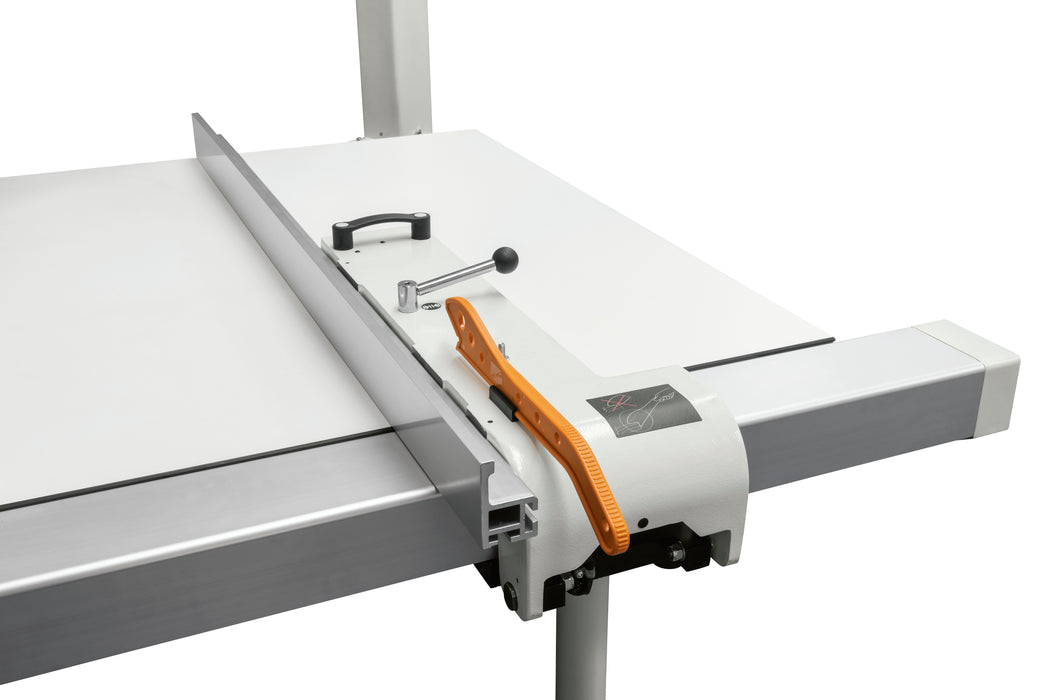

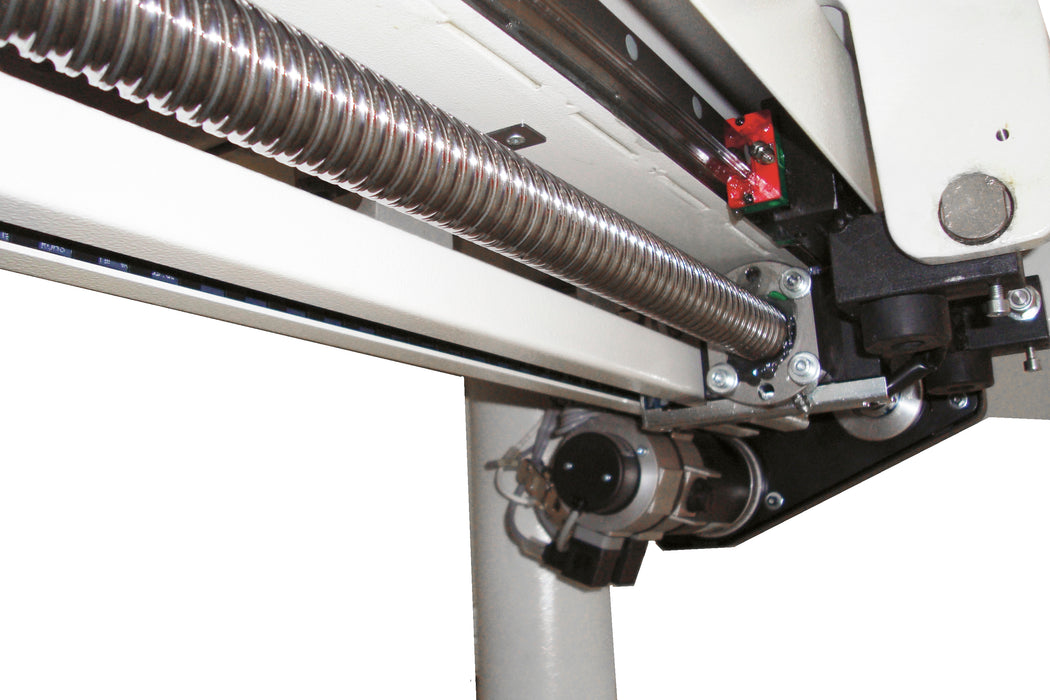

Programmed parallel fence with sliding on THK guide controlled axis complete with movement through recirculating ball screw, 25 m/min max. speed

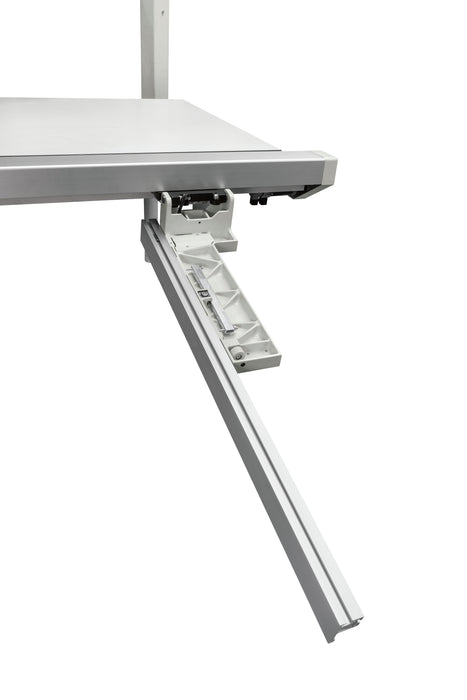

Exclusion of fence under worktable, cutting width on the parallel fence, 1500mm

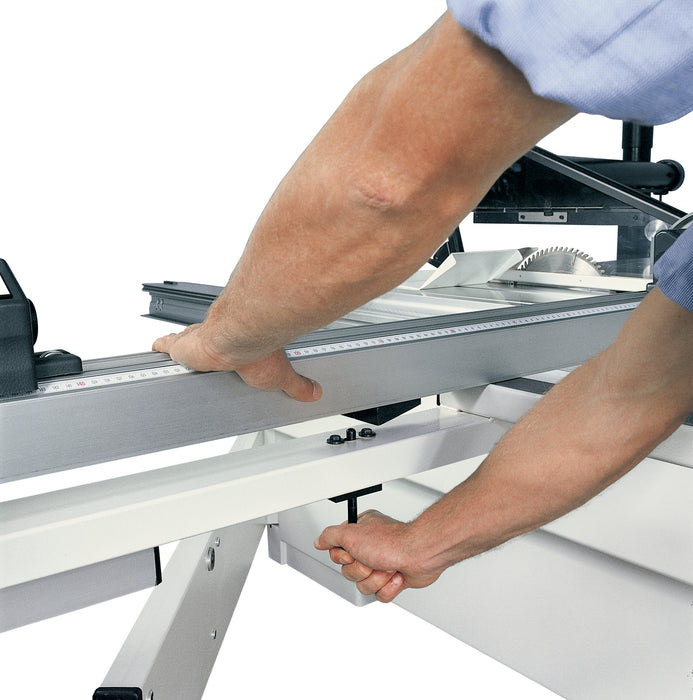

Arm support for squaring frame with sliding on ball-bushing prismatic linear guides

The work piece support frame is the only one to be made of a large dimensioned extrusion and linear guide on recirculating ball bearings

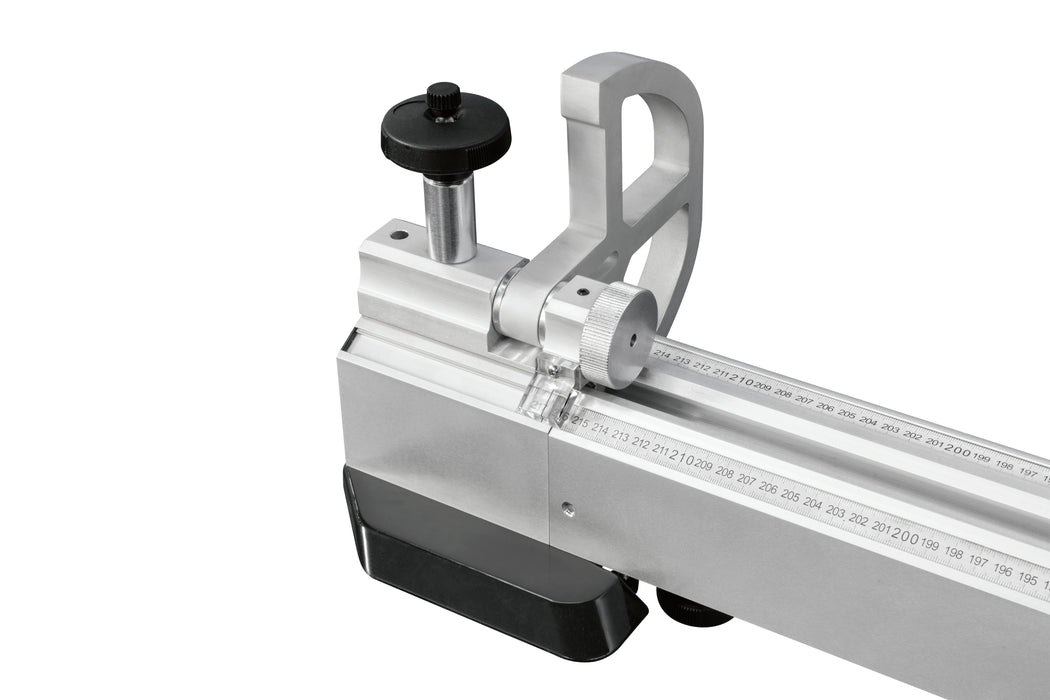

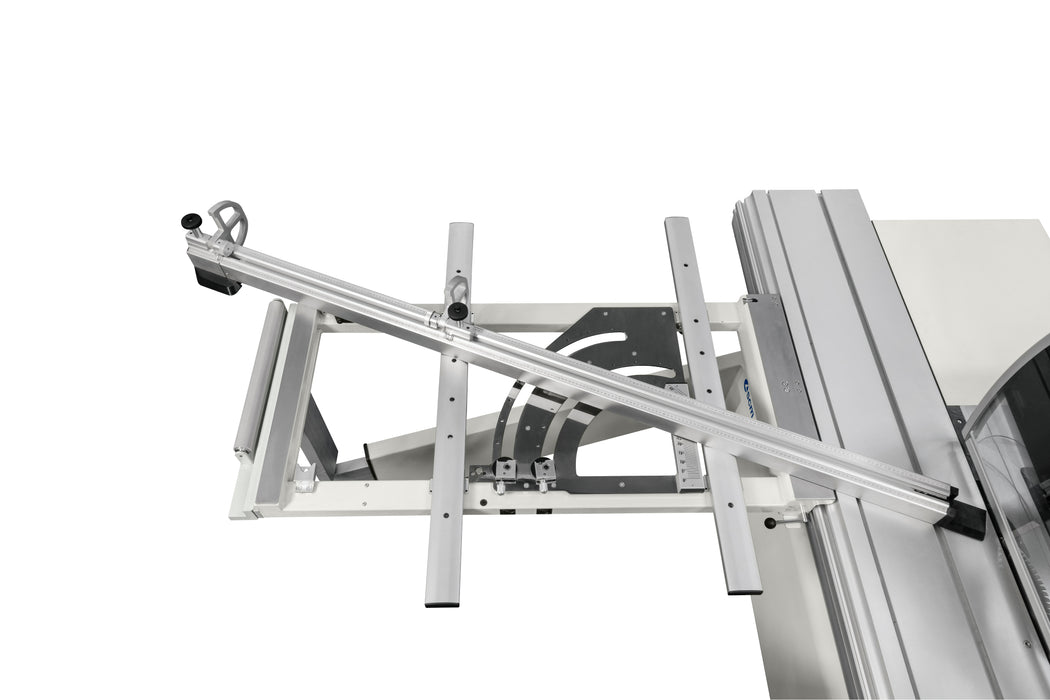

Squaring frame with "CompeX" device for angular cutting with automatic self-adjustment for the stop position. This exclusive system allows the functioning even when the optional fence for complementary cuts is applied

Extensible roller for blade support (2400mm)

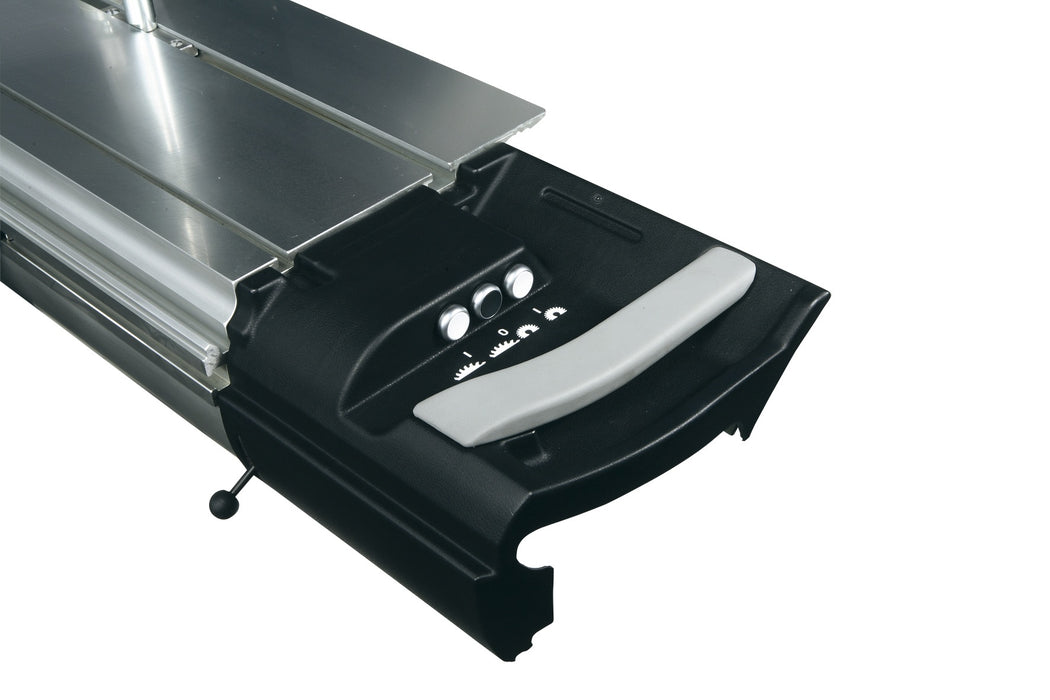

Motor Start/Stop Pushbuttons Integrated in the Sliding Carriage

Eccentric Clamp

Inverter for electronic speed change from 2700 to 6000 rpm with electronic automatic start for main motor

Electronic motor brake

Safety/Protections

  • Emergency pushbuttons located on the front of the machine side
  • Direct start main motor with pushbuttons
  • Overload protection
  • Overhead saw guard with incorporated dust extraction, 100mm outlet diameter
  • 24V auxiliary low voltage circuit
  • Automatic brake on main sawblade
  • Blade access door with safety microswitch
  • "CSA" rated electrical components, including cables

Included Tooling

  • (1) 400mm Saw Blade (57.04.17)
  • (1) 120mm Scoring Blade (53.00.00)
  • Push stick and push handle
  • Toolbox: wrenches, allen wrenches, user manual, and spare parts catalog



SMART SOLUTION
Due to the detection type, blade off activates regardless of the hand position and any other part of the human body inside the danger zone. The system operates despite of the personal protective equipment the operator wears; in fact, it also performs perfectly with any type of glove worn.

SAFETY AND ERGONOMICS
The new system for circular saws is the innovative technological solution designed by SCM to work in total safety.
The essential design ensures movement freedom related to overall dimensions and aesthetics impact.

REPEATABILITY AND RELIABILITY OVER TIME
The system provides the possibility of quick reset without compromising the machine quality and stability over time.

EXPANDED PROTECTION
The protection is guaranteed on the 3 areas next to the blade (work-piece infeed and side areas) to prevent any possible contact even caused by inappropriate or accidental movements.

Technical Specifications:

SCM SI 3 Sliding Table Saw Blade Off Technical Specs

Machine Build Configuration:

Standard and Optional Accessories:

SCM Blade Off Brochure Link

Why Choose the SCM BLADE OFF System?

Reusability and quick back-to-operations: After the system is triggered, blades can return to work position in seconds. The blades do not get damaged, there are no cartridges to replace and, no re-calibration needed.

Quick start-up: The procedure of turning on and configuring the Blade Off system takes less than a minute. The operator will not even notice that and is not required to perform any start up activity.

It is a predictive system: The Blade Off system will prevent any contact with the main blade. No amputations, but also no minor injuries.

It is not assisted by a software or cameras: No cameras, algorithms, AI that determine a working space intrusion. More accurate and less false positives.

Protects from a wide variety of accident scenarios: Thanks to the responsiveness of the system, the operator is protected from high-speed accidents, which are generally caused by involuntary and sudden intrusion of the blade perimeter.

Works with any ambient lighting

Dust does not affect operability

Works also if the operator is wearing gloves

No proprietary tooling

15 HP main motor – unmatched

All the technology, quality, precision, and ease of use of a SCM slider



Differences Between the Class SI 400EP & L'invincibile SI 3 Blade Off:



Blade Off Short Demonstration Video

Blade Off SCM | Safety First Video

Blade Off: The Innovative Safety Technology for SCM Circular Saws Video
