New, robust and easy to use 3-Axis CNC from SCM. A compact 3-axis machining center ideal for all types of milling, decorations, engraving, signboard creation and 3D models prototyping. Perfect for new workshops or workshops with limited space. An excellent solution for training in schools, prototyping departments of industrial realities thanks to its ease of set up and use.
Designed with the highest of safety standards and equipped with an integral cabin with internal LED lighting to not only ensure protection of the operator, but also keep the surrounding environment clean. Easy programming with “open” virtual human-machine interface capable of importing G-code from any type of CAD/CAM software. The machine has a powerful 2,4 kW electrospindle with R25 tool-chuck generally used on higher-segment machines. The ability to include a 4th interpolating axis (lathe processing) that can be positioned on the worktable.
Maximum Safety

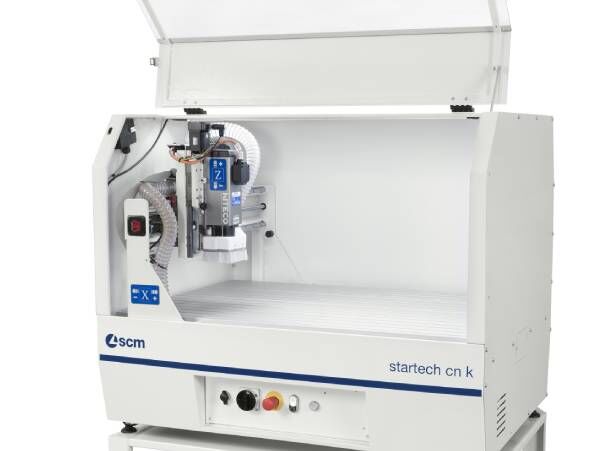

The integral cabin with internal LED lighting ensures protection for the operator and keeps the surrounding environment clean.
Easy Programming

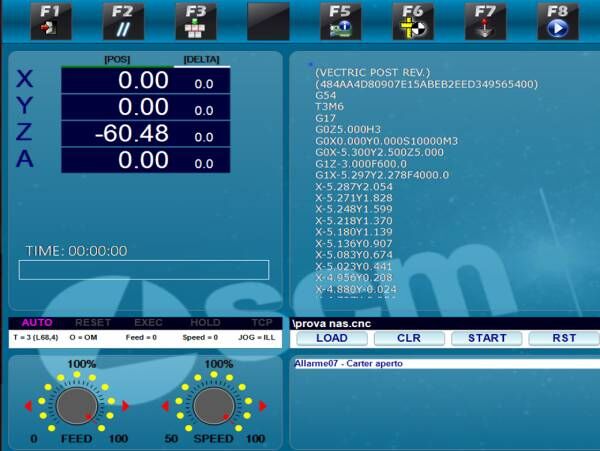

“open” virtual human-machine interface capable of importing G-code from any type of CAD/CAM software (it is advisable to verify with the software supplier that the CAD/CAM provides a G-code that can be read from the interface).
Unique in its Category
The machine has a powerful 2,4 kW electrospindle with R25 tool-chuck generally used on higher-segment machines!
No Limit to Creativity

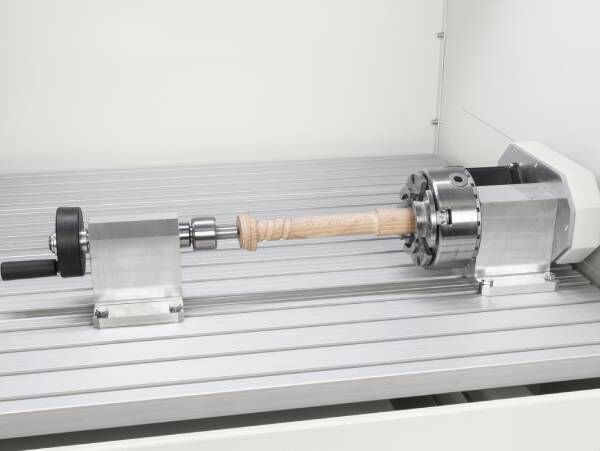

4th interpolating axis (lathe processing) that can be positioned on the worktable.
Standard Equipment
‒ 230V - 60 Hz single-phase power supply
‒ Integral protection cabin with plexiglass front door
‒ NC movement with 3 interpolating axes
‒ Ethernet port for user PC connection (PC not included)

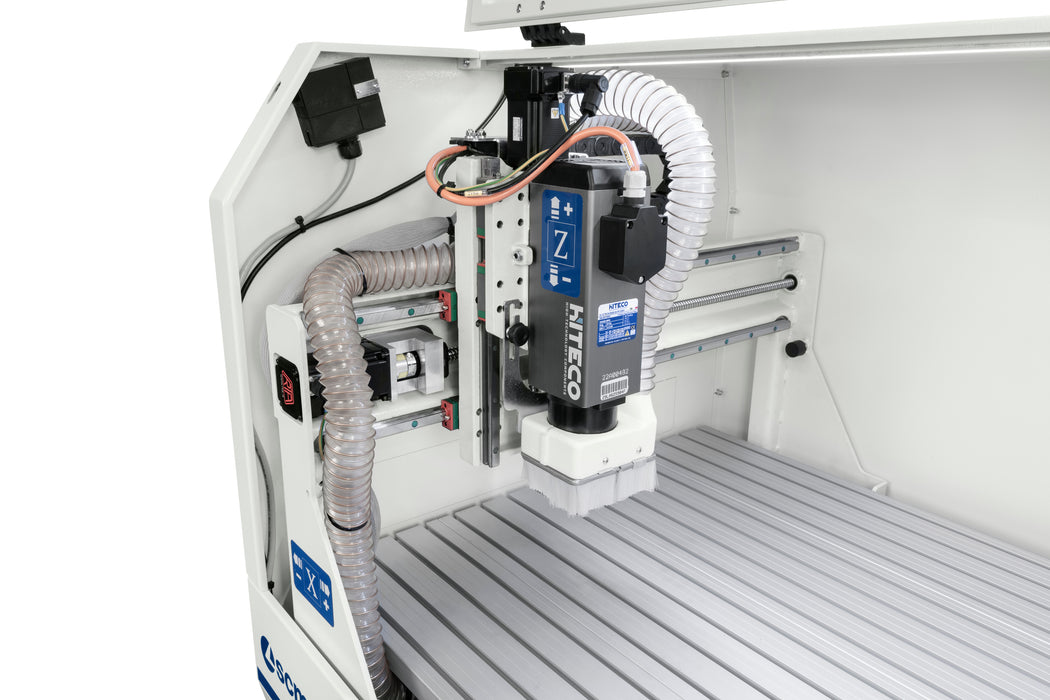

‒ 2,4 kW S6 Hiteco electrospindle (18000/24000 rpm) with R25 attachment
‒ Work table with "T" grooves (passage of M8 screw or nut)
‒ Internal LED lightening
‒ HICAM2 virtual human-machine (HMI) interface
Machine Build

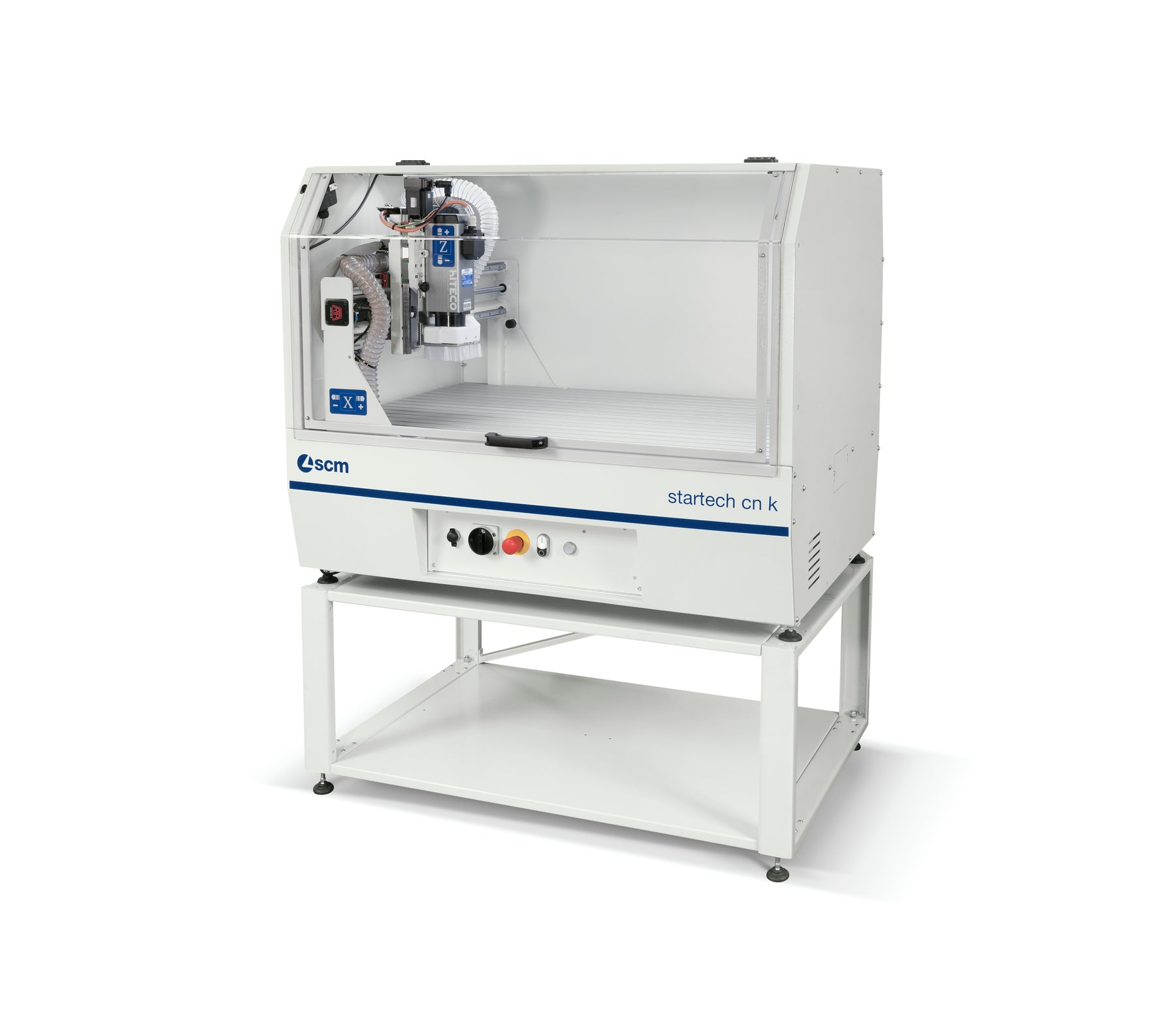

Startech CN K - USA/CAN version
- Voltage 230
- Frequency 60 hz
- Machine support base with wheels and adjustable feet, (height 500mm, 19.62”)
- Kit of 5 pneumatic suction cups, (to be positioned on the work table)
- Tool height detection sensor
- Additional packaging (for the support base)
- Triple wall box
Machine Layout
TECHNICAL SPECIFICATIONS
Work Table Work table dimensions: 1,170 x 760 mm (46” x 30”) “T” grooves dimensions: 13.5 x 7 mm (0.5” x 0.25”), 8.5 mm opening for passage of M8 screw or nut
Axes X-Y-Z strokes: 915 – 610 – 176 mm (36” – 24” – 6.9”) Z work piece clearance: 160 mm (6.3”) X-Y-Z maximum axis stroke: 5 – 5 – 2.5 m/min (16 -16 – 8 ft/min) Minimum distance of the spindle ring from the work table: 10 mm (0.37”) Axes positioning precision: ±0.05 mm (±0.002”)
Electrospindle
Hiteco electro spindle motor power: 2.4kW - S6 at 300Hz Maximum rotating speed: 24,000 rpm Tool chuck: R25
Tools Maximum tool holder diameter: 16 mm (0.62”) Maximum tool diameter: 60 mm (2.31”)
Installation Requirements Electrical requirements: 230 V – 60 Hz - Single-phase – 16 A
***subject to change; must be verified prior to installation Nominal extraction air consumption: 115 m3/h (67 CFM) Exhaust air speed: 20 m/s (66 ft/s) Exhaust outlet diameter: 40 mm (1.56”) Compressed air consumption: (only with pneumatic suction cups option) 120 Nl/min Pneumatic system operating pressure: (only with pneumatic suction cups option) 6.5 bar
Accessories
77.74.19 - Machine support base with wheels and adjustable feet, (500mm height, 19.62”)
77.74.20 - Kit of 5 pneumatic suction cups, (to be positioned on the work table)
77.74.21 -Tool height detection sensor, (to be positioned on the work table)
77.74.22 - 4th interpolating axis (lathe processing), (to be positioned on the work table)
00F0900030L - Vcarve Pro
VCarve Pro by Vectric provides a powerful but intuitive software solution for creating and cutting parts on a CNC Router.
VCarve Pro gives you the power to produce complex 2D patterns with
profile, pocket, drill and inlay toolpaths, plus gives you the ability to
create designs with v-carving textures as well as import and machine
unlimited Vectric 3D clipart or single model files.
The “Pro” edition gives you unlimited job and toolpath size, true shape
nesting & job set-up sheets, ideally suited to a production environment.
Complete set of 2D Design and Layout Tools (Easily create vectors from scratch or import and edit bitmap images)
