Superset NT, Automatic Throughfeed Moulder

Superset NT, Automatic Throughfeed Moulder

by SCM
$0.00
SKU WSI-SCMNT

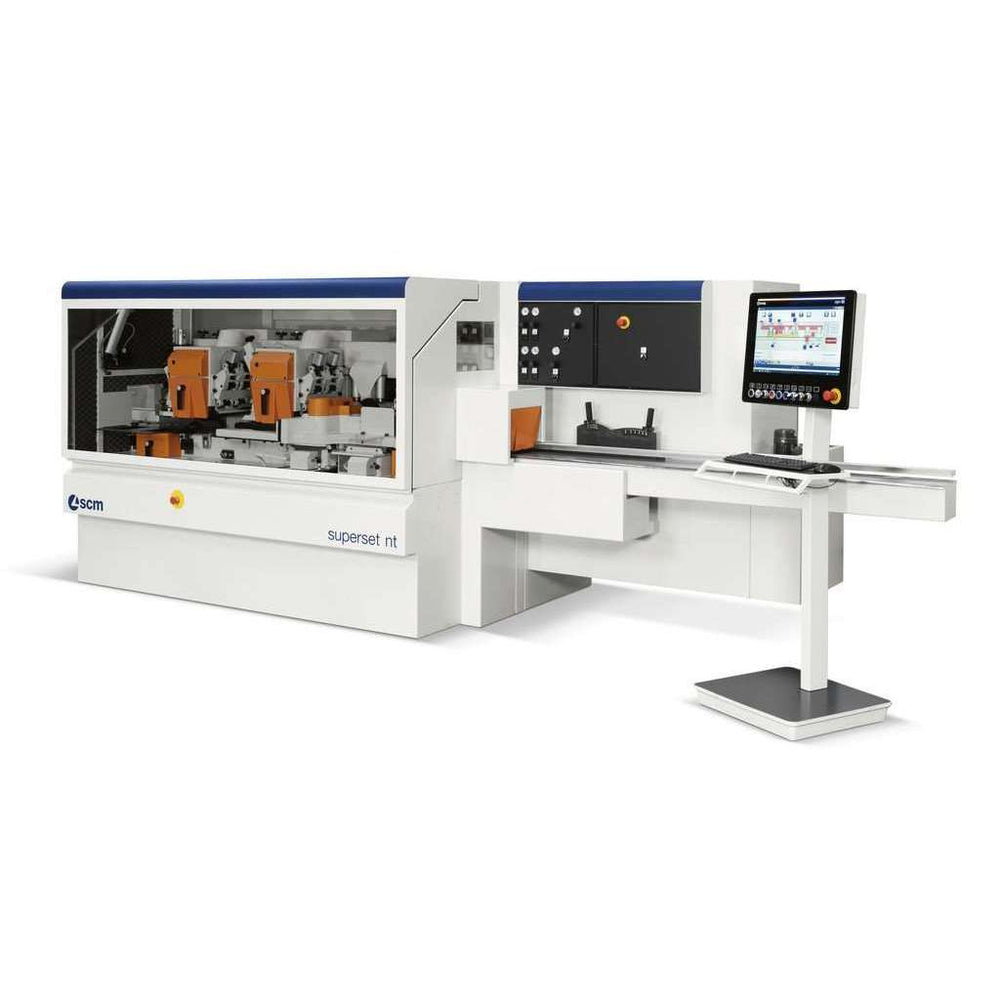

Superset NT, Automatic Throughfeed Moulder

The Superset NT is the ideal machine for medium sized companies producing furniture elements, matchboards, stairs, door and window frames and general architectural millwork joinery shops.

Benefits

  • Smaller and customized job lists
  • Maximum reduction in setting-up times
  • Top finish quality
  • High reliability
  • Maximum operator safety an observance of environmental conditions
  • Limited investment

Operations Performed: S4S Planing and Straightening, Profiling, Multi Rip Saw.

Workable Materials:

Solid Wood: Lamellar, Blockboards

Panels: Chipboard, Plywood, MDF, OSB, HPL, Veneered Panels

Other: PVC, PE, Insulation Foam

Brochure: Superset NT

Superset NT, Automatic Throughfeed Moulder Compositions

SCM Superset NT Machine Compositions

EASE OF USE

The new electronic control MOBILE PC makes machine programming intuitive. Clear and precise information are always available, thanks to detailed reports

INCREASED PRODUCTIVITY

The SET-UP system allows the operator to change tools and perform adjustments in just a few seconds, making set-up time up to twenty times faster.

HIGH VARIETY OF PROFILES

The HSK technology allows downtimes reduction and finishing quality improvement, with the best ergonomics for the operator.

CUSTOMISED COMPOSITIONS

Ten possible configurations thanks to two right vertical spindles, two upper horizontal spindles, with and without the universal spindle.

.

Technical data

    Superset NT
Minimum working width (finished section) mm 25 [15 opt.]
Maximum working width (finished section) mm 240 [260 opt.]
Minimum working thickness (finished section) mm 6
Maximum working thickness (finished section) mm 120 [200 opt.]
Feed speed m/min 5 - 25 [6 - 40 opt.]
Motors power kW (HP) 4 (5.5) [up to 18.5 (25) opt.]
Spindles rotation speed rpm 6000 [8500 opt.]
Tool-holder spindles diameter mm 40 [50 opt.]
Axial adjustment of vertical spindles from worktable mm 80 [75 opt. with HSK]
Axial adjustment of horizontal spindles from right fence mm 45
Min./max. profiling tool diameter mm 100/200
Available units n. 4 - 8
